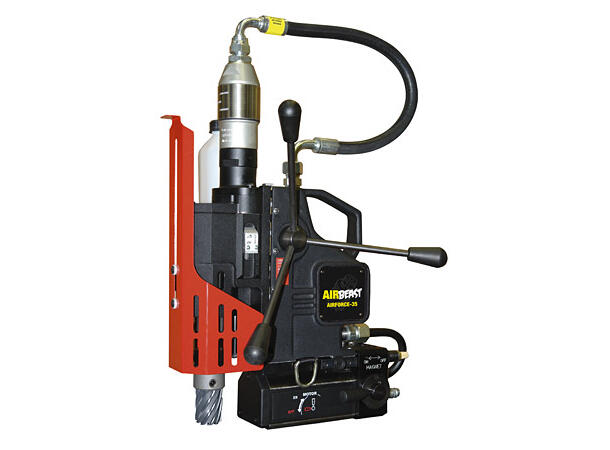

AirForce45 - Magnetbormaskin, luftdrevet
Kraftig magnetbormaskin med 12-45mm kapasitet.
The Airforce-45 is a pioneering 2 morse taper pneumatic drilling machine specifically designed for hazardous environments.
It is the only pneumatic magnetic drill offering a built-in 2 morse taper system allowing the use of twist drills up to 19mm and annular cutters up to 45mm.
Specification
Model Airforce 45
Spindle MT2
Weight 19kg
Cutter Capacity 45mm Ø x 2"depth of cut
Twist Drill Capacity 24mm
Air consumption 1400 I/min
Arbor Bore 19mm Weldon
Stroke 150mm
Cooling system Through ring
Type of cooling fluid Water soluble
Height 540 min/ 680 max mm
Length 363mm
Width 262mm
Magnetic Base Dimensions 160 x 80 x 80mm
Magnet dead lift (on 25mm plate) 8000 N
