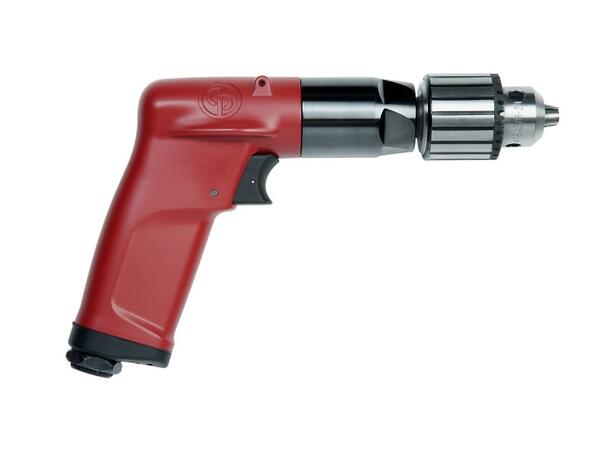

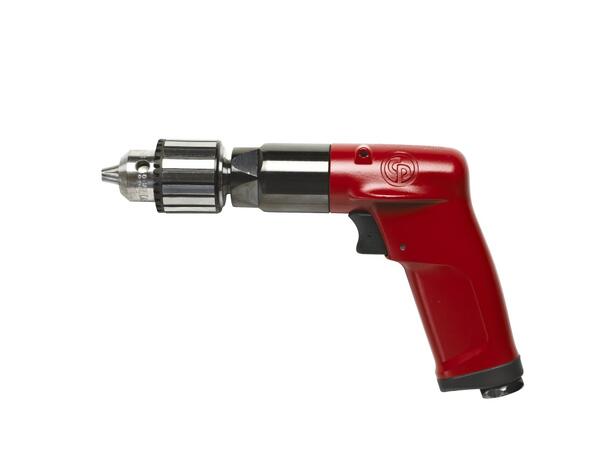

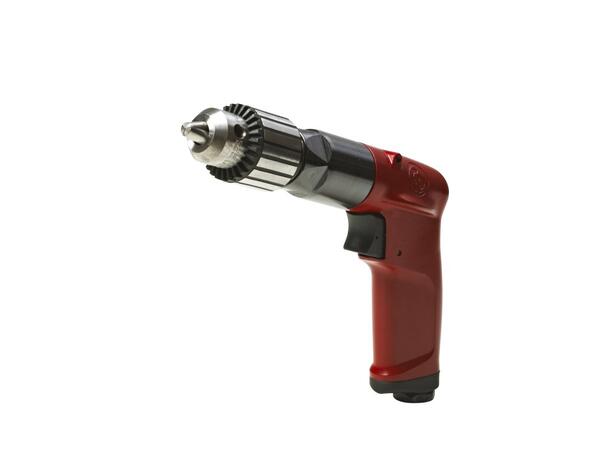

CP1014P05 Drill
Benefits
High productivity thanks to high power with great control and high quality keyed chuck
Operator comfort thanks to exclusive ergonomic features
Designed for intensive duty and high durability for industrial production applications
Features
3/8" (10 mm) industrial pistol drill with Jacobs industrial keyed chuck
Ergonomic & compact body, quiet, low vibration
High power 0.5hp (375W) with excellent control by teasing throttle handle
| Model | CP1014P05 |
| Part number | 6151580190 |
| Actual air consumption | 540 l/mn |
| Air inlet thread size | 1/4 " |
| Box dimensions | 170x250x75 mm |
| Chuck capacity | 10 mm |
| Collet / spindle size | |
| Free speed | 500 rpm |
| Free speed air consumption | 10;8 l/s |
| Length | 195 mm |
| Min. hose size | 10 mm |
| Net weight | 0.64 kg |
| Power | 375 W |
| Sound Power | 89 db(A) |
| Sound pressure | 78 db(A) |
| Stall torque | 24.5 Nm |
| Vibration | <2.5 m/s² |
| Vibration ISO | ISO-28927-5 |
| Vibration uncertainty (K) | - m/s² |
