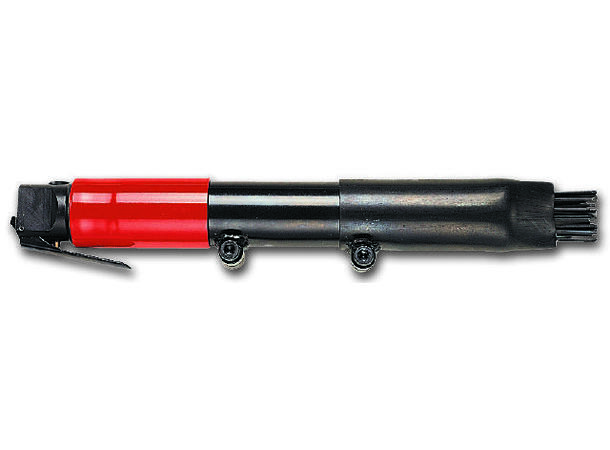

B16M Nålebanker, 19 nåler
Teknisk informasjon
| Model |
B16M |
| Part number |
6151740260 |
| Actual air consumption |
2,6 l/s |
| Air inlet thread size |
1/4 " |
| Blows per minute |
3000 |
| Bore |
23,5 mm |
| Length |
366 mm |
| Min. hose size |
10 mm |
| Needle Capacity |
19 x 1/8 (3) |
| Net weight |
2,6 kg |
| Power |
5,8 joule |
| Sound DBA pressure |
100 db(A) |
| Sound Power |
111 db(A) |
| Sound uncertainty |
3 db(A) |
| Stroke |
35,6 mm |
| Vibration |
12,5 m/s² |
| Vibration ISO |
ISO-28927-9 |
| Vibration uncertainty (K) |
7,5 m/s² |

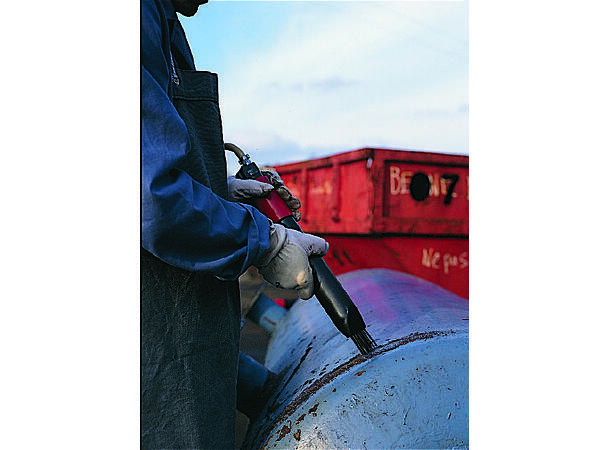

NB! Bildet er kun en illustrasjon
