Size

2

Nominal volume flow at filter inlet (l/s)

69

Dimensions of inlet and outlet connections (BSP / NPT)

3/8

Bowl connection at the bottom (BSP)

1/4

Number of filter elements

1

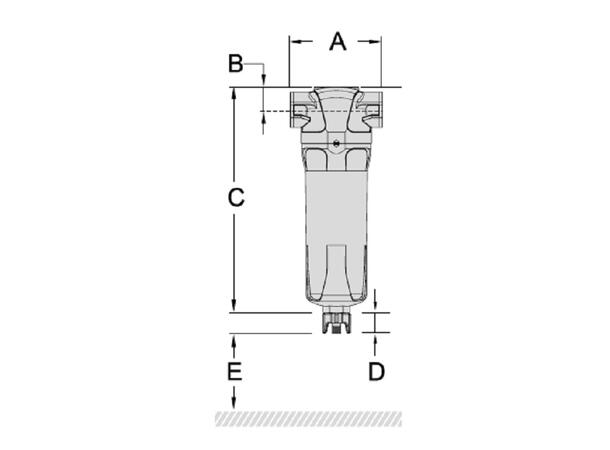

Filter dimension A (mm)

63

Filter dimension B (mm)

-

Filter dimension C (mm)

190

Drain length D (mm)

-

Service distance E (mm)

-

Filter volume ( head+bowl) (lt.)

-

Weight (kg)

0.3

Shipping length (mm)

390

Shipping width (mm)

85

Shipping height (mm)

85

Performance data

Size from

1 to 7

Particle removal (micron)

-

Outlet oil aerosol concentration (mg/m³)

0.3

Total mass efficiency (%)

>99.25

Quality class of air at outlet (oil)

3

Initial pressure drop over filter in dry applications (bar)

0.055

Initial pressure drop over filter in wet applications (bar)

0.125
