Size

9

Nominal volume flow at filter inlet (l/s)

58.9

Dimensions of inlet and outlet connections (BSP / NPT)

3/4

Bowl connection at the bottom (BSP)

3/4

Number of filter elements

1

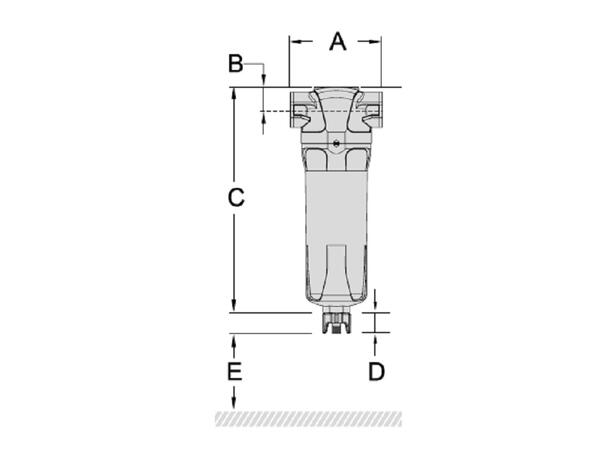

Filter dimension A (mm)

127

Filter dimension B (mm)

32

Filter dimension C (mm)

371

Drain length D (mm)

30

Service distance E (mm)

80

Filter volume ( head+bowl) (lt.)

1.5

Weight (kg)

2

Shipping length (mm)

575

Shipping width (mm)

130

Shipping height (mm)

125

Performance data

Size from

1 to 18

Particle removal (micron)

5

Outlet oil aerosol concentration (mg/m³)

1

Total mass efficiency (%)

>90

Quality class of air at outlet (particles / oil)

4 / 3

Initial pressure drop over filter in dry applications (bar)

0.05

Initial pressure drop over filter in wet applications (bar)

0.08
