Size

13

Nominal volume flow at filter inlet (l/s)

212.5

Dimensions of inlet and outlet connections (BSP / NPT)

2

Bowl connection at the bottom (BSP)

3/4

Number of filter elements

1

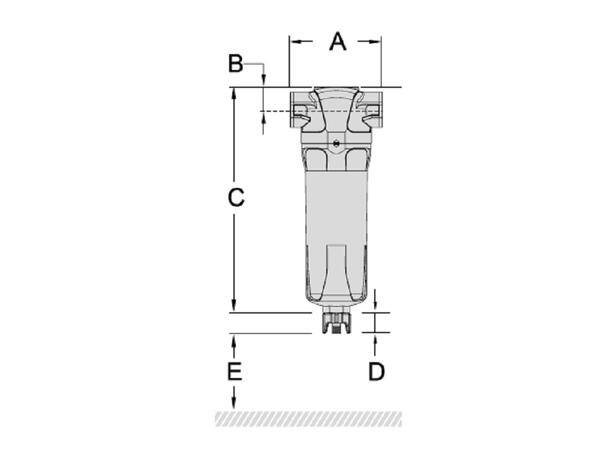

Filter dimension A (mm)

170

Filter dimension B (mm)

53

Filter dimension C (mm)

508

Drain length D (mm)

30

Service distance E (mm)

100

Filter volume ( head+bowl) (lt.)

3.5

Weight (kg)

4.9

Shipping length (mm)

720

Shipping width (mm)

185

Shipping height (mm)

185

Performance data

Size from

1 to 18

Particle removal (micron)

-

Outlet oil aerosol concentration (mg/m³)

0.3

Total mass efficiency (%)

>99.25

Quality class of air at outlet (oil)

3

Initial pressure drop over filter in dry applications (bar)

0.055

Initial pressure drop over filter in wet applications (bar)

0.125
