Size

6

Nominal volume flow at filter inlet (l/s)

33.1

Dimensions of inlet and outlet connections (BSP / NPT)

1/2

Bowl connection at the bottom (BSP)

3/4

Number of filter elements

1

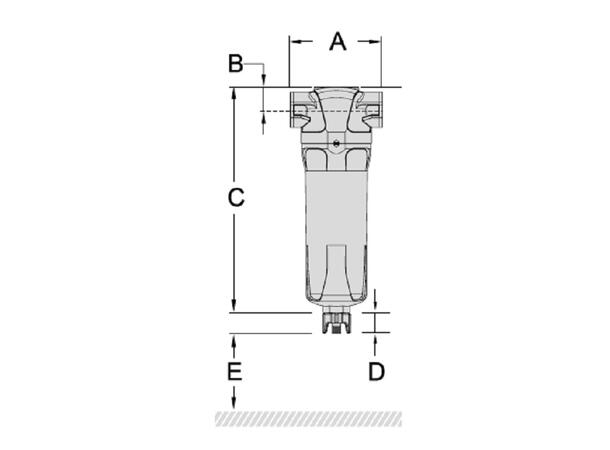

Filter dimension A (mm)

127

Filter dimension B (mm)

32

Filter dimension C (mm)

285

Drain length D (mm)

42

Service distance E (mm)

80

Filter volume ( head+bowl) (lt.)

1.1

Weight (kg)

1.7

Shipping length (mm)

460

Shipping width (mm)

130

Shipping height (mm)

125

Performance data

Size from

1 to 18

Particle removal (micron)

1

Outlet oil aerosol concentration (mg/m³)

-

Total mass efficiency (%)

-

Quality class of air at outlet (particles)

3

Initial pressure drop over filter in dry applications (bar)

0.055

Initial pressure drop over filter in wet applications (bar)

-
