Size

4

Nominal volume flow at filter inlet (l/s)

15

Dimensions of inlet and outlet connections (BSP/NPT)

3/8

Bowl connection at the bottom (BSP)

1/4

Number of filter elements

1

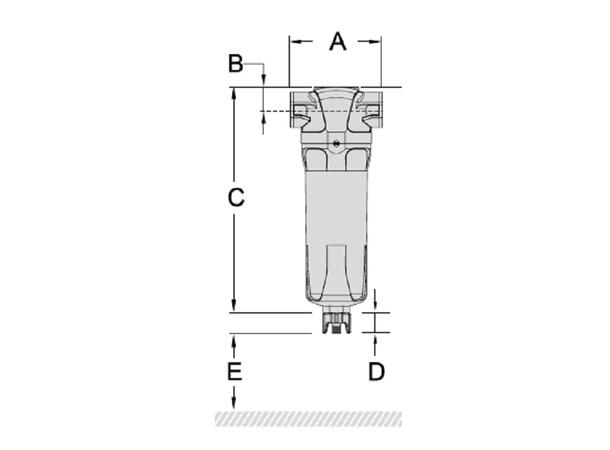

Filter dimension A (mm)

70

Filter dimension B (mm)

24

Filter dimension C (mm)

231

Drain length D (mm)

32

Service distance E (mm)

70

Filter volume ( head+bowl) (lt.)

0.3

Weight (kg)

0.6

Shipping length (mm)

390

Shipping width (mm)

85

Shipping height (mm)

85

Performance data

Size from

1 to 18

Particle removal (micron)

-

Outlet oil aerosol concentration (mg/m³)

0.003

Total mass efficiency (%)

-

Quality class of air at outlet (oil)

1

Initial pressure drop over filter in dry applications (bar)

0.115

Initial pressure drop over filter in wet applications (bar)

-
