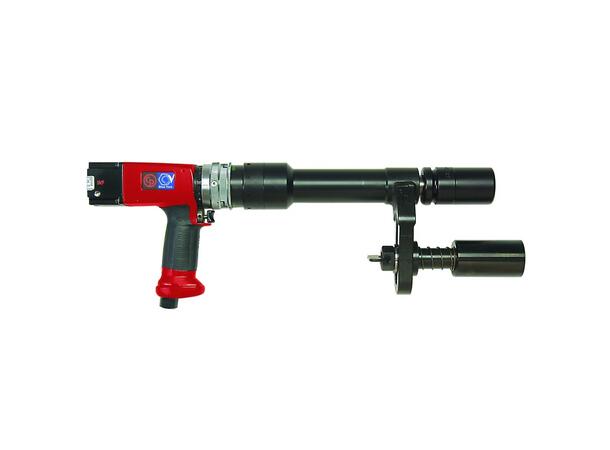

CP7600xC-R4P 1" Bluetork Seigdrager DEMOKJØRT!

CP7600xC-R4P 1" Bluetork Seigdrager

DEMOKJØRT!

Varenr: 8941076025-B
BeskrivelseSupport
Beskrivelse

CP7600rxC-R4P Bluetork Seigdrager



Seigdragende 1" trekker med momentkontroll

Benefits

Selection Up to 4 calibrated tightening Torque
Accurate torque
Operator's comfort for more productivity
Fast rundown

Features

Air Shut-off clutch at preset torque
Integrated reaction bar standard with blade
Low noise level: 79 dB(A)
Almost no vibration : <2,5 m/s²
Extended version with included spring load cup reaction bar

ModelCP7600xC-R4P
Part number8941076025
Air inlet thread size40 "
Free speed100 rpm
Free speed air consumption19 l/s
Handle typePistol
Length495 mm
Maximum Torque (fwd)900 Nm
Maximum Torque (reverse)900 Nm
Net weight9.1 kg
Reaction barxC reaction bar
ReversibleReversible
Socket retainerHole
Sound Power90 db(A)
Sound pressure79 db(A)
Square drive1 "
Torque preset #4
Vibration ISOISO-28927-2
Working Torque Range (fwd)450 - 900 Nm
Working Torque Range (reverse)450 - 900 Nm
