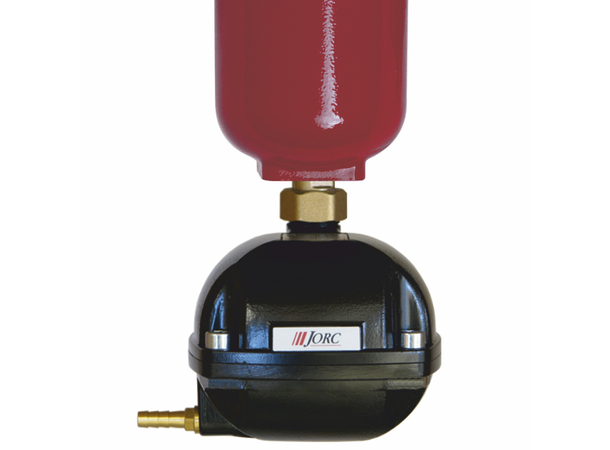

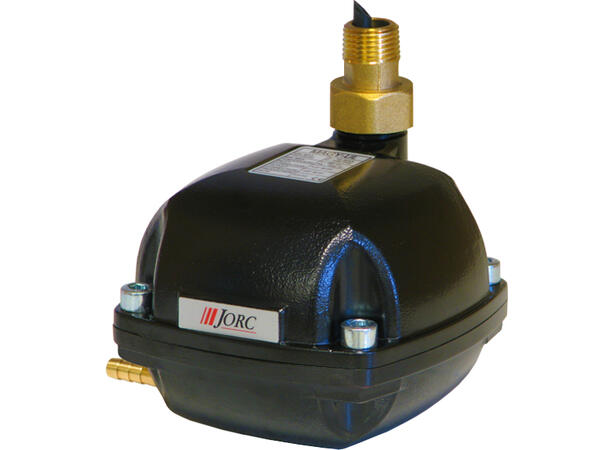

Automatisk drenering
Magnetventil med flottørdrenering
Velegnet for trykktank, filterhus, tørker etc hvor man ønsker drenering
i solid utførelse som fungerer uten strømtilførsel.
Anslutning 1/2" gjenge
Dreneringsgjenge 1/8"
IP68 beskyttet
0-16 bar arb trykk
1-50gr C arb temperatur.
Obs ved fare for minusgrader risikerer man at dreneringen blir stående å lekke luft.
Produsert i korrosjonsbestandig aluminium med utv. lakket overflate.
The MAGY-UL uses specially selected magnets that operate the 2/2 way direct acting valve assembly.
The discharge process of the MAGY-UL is automatic and there is no loss of compressed air during the condensate discharge cycle.
The specially selected magnets ensure a high operation consistency.
The MAGY-UL is easy to install and to service and can also remain hooked up to the filter while maintenance is being carried out (i.e. the drain does not need to be unthreaded from the filter).
JORC recommends to replace all unreliable filter (float) drains and to install the MAGY-UL.
