BREATHING AIR is a range of High Pressure Compressors that includes several models designed & manufactured by

NARDI COMPRESSORI to provide breathing air for the filling of scuba diving cylinders.

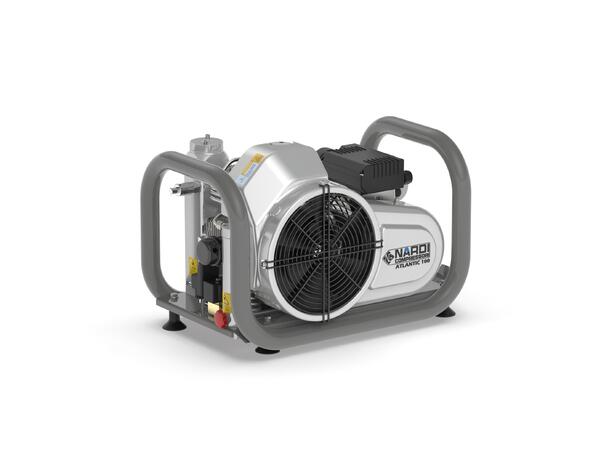

ATLANTIC is a highly efficient and mechanically strong compressor and at the same time it is compact and easy to carry around.

QUALITY OF COMPRESSOR BLOCK

The compressor block, or pump unit, is the heart of the ATLANTIC compressor.

This is a critical component on which NARDI has put an important technical effort.

Its features among which, the use of light alloys with high thermal efficiency, the aluminum alloys also used for the compressor

block and all components are made of anticorrosion and quick heat dissipation materials.

The crankshaft bearings are all made in Europe and their high quality guarantees the compressor a longer lifetime.

Cooling of the compressed air is done through the interstage aluminum and stainless steel cooling coilssystem.

This is a small-sized compressor with 4 compression stages with all piston rings made in cast iron providing high performance over the time.

EFFICIENCY OF THE FRAME

The frame is designed to reduce weight and dimensions, making the compressor light and portable,

with an aluminum frame that is coated with epoxy powder paint.

The powder coating and stainless steel components protect the compressor against corrosion also in marine environments.

PURITY OF FILTRATION

The compressor is equipped with a filter and a separator that guarantees the quality of breathing air in

conformity with the UNI EN 12021:2014 standards.

ECONOMY

Everything in the compressor is designed to optimize both the operating as well as the labour costs.

When the compressor is working, thanks to its NARDI designed automatic condensate drain, equipped with a unique

patented SLOW FLOW SYSTEM, there is a reduction of the quantity of gas expelled with an 80% saving

on pressurization of the entire system.

FILLING VALVES

The compressor comes with high pressure filling valves with several different connectors both for 200 Bar as for 300 Bar.

These components are very easy to use. In fact, with a simple turn of the knob you can close the air passage and

depressurize the valve to be able to disconnect the cylinder.

Some highlights:

1 Intake Filter

2 Compressor Block

3 Flywheel Cover

4 Interstage Separator

5 ATL Filter

6 Pressure Maintaining Valve

7 Filling Hose Connections (Maximum 2) with no-return valve

8 Filling valve with Pressure Gauge

9 Automatic Condensate Drain (Optional)

10 Final Pressure Switch with Autostop (Optional)

11 Electric Motor

12 Hour Meter

13 Frame coated in aluminum powder paint
