The Electric OIL-LESS piston compressors are available in single-phase and three-phase versions.
These heavy
duty professional and reliable compressors are manufactured with the
best materials, to guarantee end users long life durability with very
little maintenance.
These compressors are available in 8-10Bar, 15 bar,
21bar, up to a maximum of 30bar and they can be ordered with different
frames and tank sizes to satisfy the market demand.
SUPER EXTREME 1 TN 18L.:

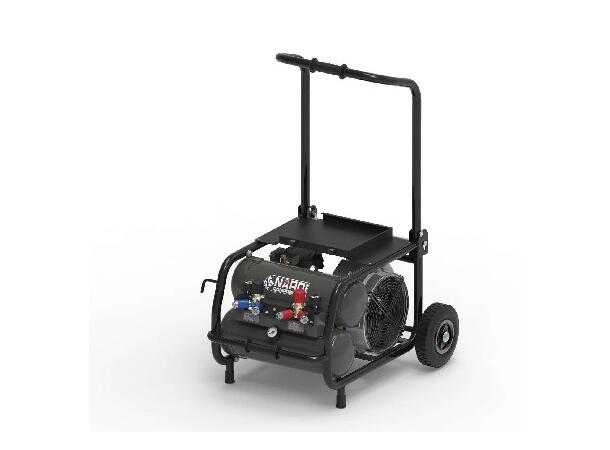

The SUPER EXTREME 1 TN 18L. model is a unique
double-pressure compressor without oil lubrication with a dual pumping
performance of 10 and 30Bar.
This heavy duty machine with a captivating
and modern look was designed by our engineers and manufactured with the
best materials and advanced technologies.
Its 18L aluminium tank and
pumping group are assembled inside a trolley with an easy-fold handle
for easy transportation.
This two-in-one portable compressor is the
perfect choice for those who need to work with two different pressures.
Different combinations of engine and engine capacity, visible in pdf product, easily visible in the download.
- 01 Compressors with cast aluminum case
- 02 Light and compact; unique system of connecting rods for perfect balance
- 03 Heat treatment of components to extend the life and performance
- 04 Advanced compression technology, in continuous development
- 05 Stainless steel valves
- 06 Tanks painted approved, with handles and wheels for easy transport
- 07 Reliable electric motors designed and built by Nardi Compressors specific for each model type
Technical specifications
|
Model name
|
Tank
|
Cylinders
|
|
|
Air Intake
|
|
Max pressure
|
|
Engine
|
Phase
|
Rpm
|
Noise
|
|
Weight
|
Dimension
|
|
Type
|
Liters
|
N°
|
l/min.
|
C.F.M.
|
m3/h
|
Bar
|
Psi
|
HP
|
Kw
|
Type
|
Rpm
|
dB
|
Kg
|
Lbs
|
cm (LxWxH)
|
|
Super Extreme 1 TN 18L.
|
18
|
2
|
130
|
4.6
|
7.8
|
30
|
435
|
2.2
|
1.6
|
Single
|
1400
|
72
|
34
|
75
|
67 x 65 x 48
|
