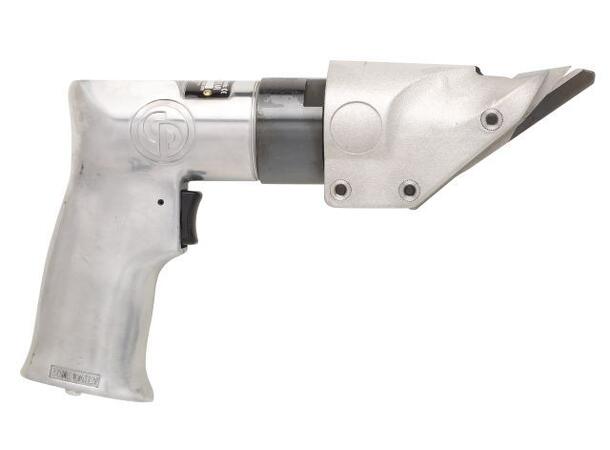

CP785S
Platesaks
Platesaks for tynnplate, (Opp til 1,2mm stål).
Spesiellt godt egnet til stål, tinn og aluminium
Benefits
Smooth operation and extended life
Operator comfort
Reliable cutting performance
Excellent tool for cutting square and angles in all types of aluminum, tin and
steel
Features
Heavy-duty pistol shear
Powerful efficient 0.5 hp (370 W) motor to cut up to 18-gauge steel (1.1 mm -
0.04'')
Triple idler planetary gearing
Ergonomic handle design
| Model | CP785S |
| Part number | T023200 |
| Actual air consumption | 438.769230769231 l/mn |
| Air inlet thread size | 1/4 " |
| Average air consumption | 1.8 l/s |
| Length | 229 mm |
| Min. hose size | 10 mm |
| Net weight | 0.86 kg |
| Sound DBA pressure | 95 db(A) |
| Sound pressure | 84 db(A) |
| Strokes per minute | 2400 |
| Vibration | 3.2 m/s² |
| Vibration ISO | ISO-28927-8 |
| Vibration uncertainty (K) | 3 m/s² |
