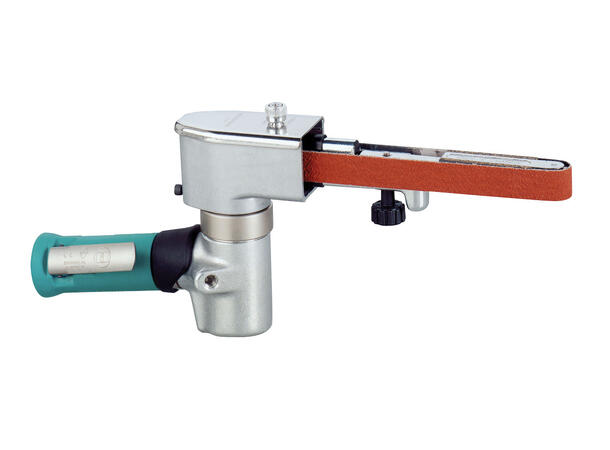

DB-15400 Dynafile III Abrasive Belt Tool

.7 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, 5/8", 3/4" W x 18" L (13 mm,19 mm x 457 mm) Belts

·
Dynafile III Abrasive Belt Tool offers all the versatility of our world-famous Dynafile II, while serving up more power (.7 hp / 522 W) for faster material removal.

·         Includes 11206 Contact Arm for belts 5/8" or 3/4" wide x 18" long. Ideal for a variety of applications. Tool does not include side handle, reducing tool weight and allowing greater maneuverability. (53163 side handle is still available as an option.)

·         Tool includes high-efficiency Rubber Drive Wheel, ideal for use with all abrasive belts.

·         Tool grinding head pivots 180 degrees.

Belt Size Inches (mm):

5/8" (16) or 3/4" (19) W x 18" (457) L

hp (W):

.7 (522)

Motor Free Speed (RPM):

20,000

Max. SFPM (SM/Min.):

4,550 (1,382)

Motor Style:

7 Degree Offset

Exhaust Type:

Front Exhaust

Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.):

32 (906)

Air Inlet Thread:

1/4" NPT

Hose I.D. Size Inches (mm):

3/8" (10)

Length Inches (mm):

14-1/4" (362)

Height Inches (mm):

4-7/8" (124)

Item Weight:

1.2 kg

Packaged Weight:

1.53 kg
