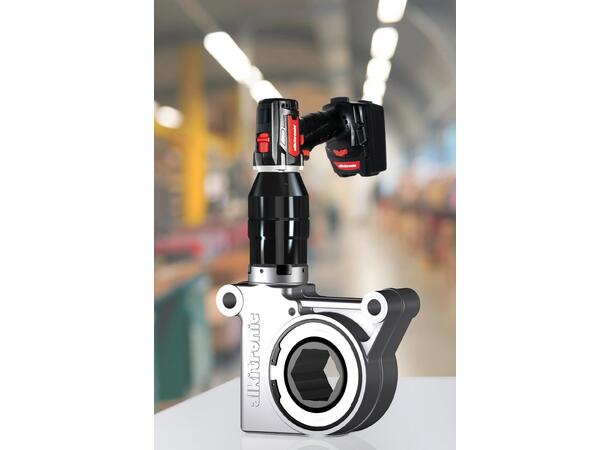

alkitronic EAF-R 46

Product number: 43021

Battery Torque Multiplier - Torque range: 250 - 2500 Nm (184 - 1843 ft.lbs.) - Art. No.: 43021

Applications

alkitronic® specials

Advantages

Speci cations

? These tools are ideally specialized for bolting connections on plate

heat exchangers, e.g. in the food and beverage sector, the paper industry,

and the chemical industry. They save much time when tightening

and loosening plate packs where perfect retention and absolute

tightness are essential.

? Reliable, low-wear operation due to continuous rotation when bolting

with spindles or long threaded bolts.

? Depending on the application, electrical or pneumatic driven torque

multipliers: torque up to 4,840 Nm / 3,570 ft.lbs.

? Targeted types for convenient working in every tightening situation:

among other options between radial gearing (R) with high-performance

worm drive; tangential gearing (SG) with highly effi cient spur gear.

? Long lifetime due to extremely robust motor housing made of cast

aluminum or break-proof polymer.

? Supplied in sturdy plastic cases.

? Successfully used worldwide by manufacturers, service companies

and end customers for over 35 years.

Pneumatic driven models:

Prerequisites for best work with the indicated torques are an operating

pressure of 2-7 bar at a volume flow of approx. 10-15 l/s. On request, our

pneumatic torque multipliers are available with ATEX certifi cation:

II 2 G D c IIB T6.

Electric driven models:

Universal AC input 100 V – 253 V, frequency 45 Hz – 66 Hz, power max. 1.4 kW,

protection category I. EC models with protection class IP54. EAF models

with two lithium-ion battery packs 18 V, 5.2 Ah, and battery charger.

? Load-free operation, with short assembly time.

? alkitronic® PC-R, PC-SG and battery driven torque multiplier EAF with

fast gear for turning in and simple, quick switching to power gear.

? SG output can be separated; the respective drive can be used individually

as a complete torque multiplier.

torque range: (184 - 1843 ft.lbs.) 2nd gear 250 - 730 Nm 1st gear 750 - 2.500 Nm torque steps in Nm: 2nd gear: 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 730 1st gear: 750, 800, 900, 1000, 1200, 1450, 1650, 1800, 2000, 2250, 2500 radial gearing (AF 46) especially for use on plate heat exchangers brushless synchronous motor (maintenance-free and low-wearing) Scope of delivery: standard support arm, two batteries (5.2 Ah), battery charger, torque chart, operating and service manual, carry case
