AirForce40 - Magnetbormaskin, luftdrevet
Kraftig magnetbormaskin med 40mm kapasitet.

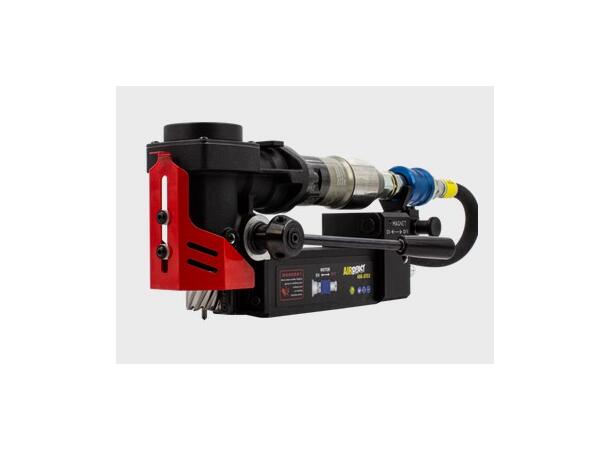

The AIRBEAST 40 ATEX is a drilling machine designed to drill holes of diameters of up to 40 mm (1 37/64?) to a depth of up to 25 mm (63/64?) by using annular cutters.
The machine is Ex c IIC T6/T4 Gb Ex c IIIB T6/T4 Db certified to allow work in potentially explosive atmospheres.

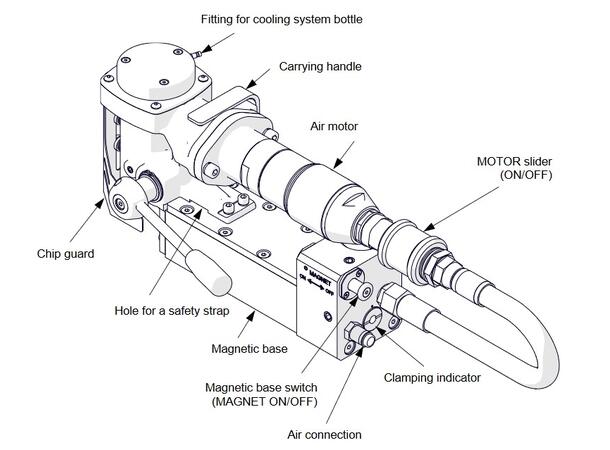

The magnetic base clamps the machine to ferromagnetic surfaces. This assures that the operator is safe, and the machine works correctly. A safety strap protects the machine from falling in case of clamping loss.
It is allowed to drill outside pipes of a minimum diameter of 250 mm after checking the clamping of the magnetic base using the indicator.
The machine is designed for use by a professional operator only.
Features / Benefits:
• Pneumatic drive and permanent
magnetic base eliminates the need
for electric power.
• Compact - only 180mm high.
• Light-weight.
• Great safety features.
• Strong permanent magnet base.
• Ideal for hazardous environments such as oil drilling platforms, mining industry, shipbuilding or petrochemical industry.
Tekniske spesifikasjoner:
Model Airforce 40
Weight 15kg
Cutter Capacity 40mm Ø x 1" depth of cut
Air consumption 1400 I/min
Arbor bore 19mm Weldon

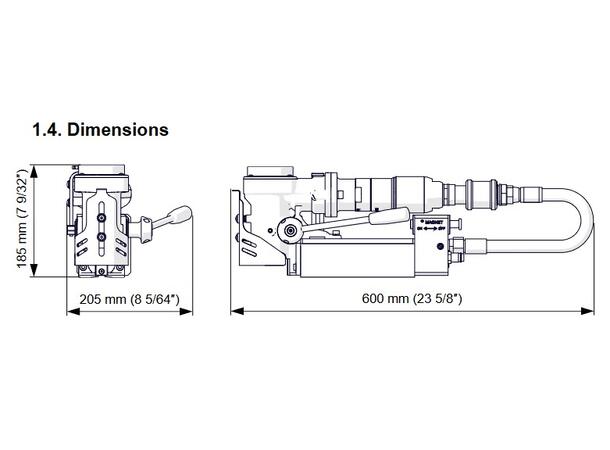

Height 185mm
Length 480mm
Width 168mm
Magnetic Base Dimensions 75 x 180 x 56mm
Magnet dead lift(on 25mm plate) 7000N
Motoreffekt 800W - trykkluftdrevet
Vibration level: 0 m/s2 (Because its clamped to surface there are noe vibration exposure for operator.
