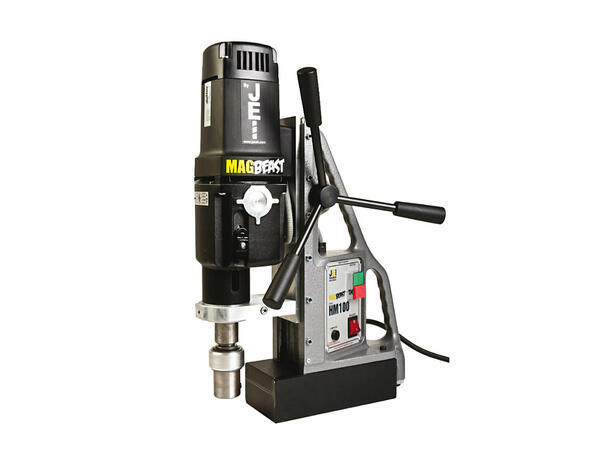

HM100 - MagBeast - Magnetbormaskin, elektrisk
Kompakt og kraftog magnetbormaskin.
A durable heavy duty 3 morse taper drilling machine. Also available in a tapping (HM100T) or swivel base (HM100S) option.
Features/Benefits:
- Heavy duty 1800 watt motor - Enables larger cutting capacity
- Weighs on 20kgs and 100mm cutter capacity - Unrivalled weight to cutting capacity ratio
- 4 speed gear box (or 2 speed variable - HM100T) - Ideal for a wide selection of cutting operations
- 250mm total drill travel - Facility to use 150mm (6") long cutters
- Maintenance friendly twin slide rails - No wearing parts and adjustment free operation
Specification
Model HM100 HM100T (Tapping) HM100S (Swivel)
Spindle MT3 MT3 MT3
Weight 20kg 21kg 21kg
Max. Stroke 250mm 250mm 280mm
Cutter Capacity 100mm Ø x 6" depth of cut 100mm Ø x 6" depth of cut 100mm Ø x 6" depth of cut
Tapping Capacity n/a M30 n/a
Twist Drill Capacity 19mm with 3MT chuck 32mm with 3MT twist drill 19mm with 3MT chuck 32mm with 3MT twist drill 19mm with 3MT chuck 32mm with 3MT twist drill
Countersink Capacity 1800 watts 1800 watts 1800 watts
RPM 4 fixed speeds: 110 175 245 385 2 variable speeds: 60-140 200-470 4 fixed speeds: 110 175 245 385
Height 480mm 480mm 480mm
Length 340mm 340mm 360mm
Width 130mm 130mm 130mm
Magnet Base Fixed Fixed Swivel 360 degrees
Magnetic Base Dimensions 102mm x 212mm 102mm x 212mm 102mm x 212mm
Magnet Deadlift (on 25mm plate) 2050kg 2050kg 2050kg
Noise Level Does not exceed 90dB Does not exceed 90dB Does not exceed 90dB
Vibration Level Does not exceed 2,5m/s2 Does not exceed 2,5m/s2 Does not exceed 2,5m/s2
Voltage 110v 0r 240v 110v 0r 240v 110v 0r 240v
