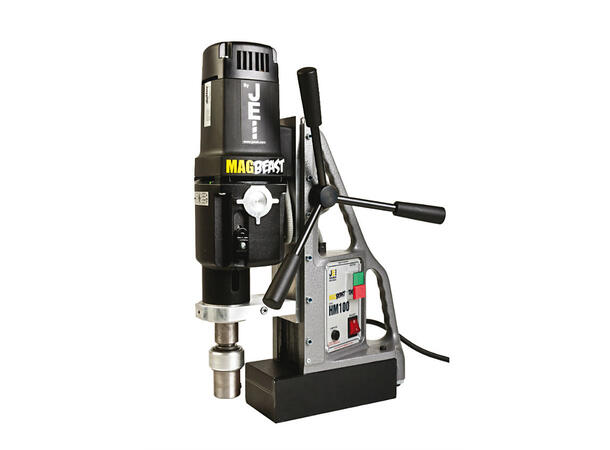

The complete 3MT magnetic drilling and tapping model also capable of cutting, reaming, counterboring and threading holes.

• Heavy duty 1800w motor
• 2 speed variable gearbox with reverse
• 250mm total drill travel
• Sleek, ergonomic design
• Maintenance free twin slide rails
• Fixed safety guard
• Simple and effective control panel
• Powerful electromagnetic base
• Optional 360º swivel base

Model HM100T
Spindle MT3
Weight 23.5 kg
Max Stroke 250 mm
Cutter Capacity 100 mm Ø x 6” depth of cut
Twist Drill Capacity 19 mm with 3MT Chuck ~ 32 mm with 3MT Twist Drill
Countersink Capacity 55 mm
Tapping Capacity M30
Reaming Capacity 39 mm
Motor 1800 W
RPM 2 Variable Speeds (torque control) 60–140 / 200–470
Swivel Base n/a
Height min/max 450 / 700 mm
Length x Width 345 x 190 mm
Magnetic Base L x W 212 x 102 mm
Magnet Deadlift 2050 kg on 1” Plate (20100 N)
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Voltage/ Part no 110 V – DRILL-HM100T/1 | 240 V – DRILL-HM100T/2
Shipping Weight 28.65 kg
Shipping Dimensions 571 x 450 x 250 mm
