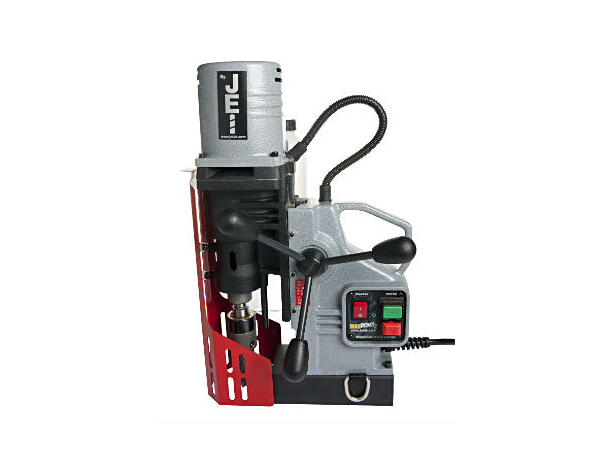

MagBeast 2 - Magnetbormaskin, elektrisk
Kompakt og kraftig magnetbormaskin med 50mm kapasitet.
MagBeast 2 - A new generation 2 morse taper magnetic drilling machine.
Features / Benefits:
- Heavy duty 1300 watt motor
- 2 speed gear box.
- Compact design.
- Excellent weight to power ratio.
- 1 piece slide and gear box.
- Simple gib backlash adjustment.
- Maintenance friendly design.
- 153mm stroke - ideal for twist drills.
Tekniske spesifikasjoner:
Model MAGBEAST 2
Weight 16.5kg
Cutter Capacity 51mm Ø x2" depth of cut
Twist Drill Capacity 23mm
Countersink Capacity 50mm Ø
Motor 1300 watts
Height Min/Max Min 426 / Max 579
Length 297mm
Width 206mm
RPM 2 fixed speeds 200 / 400
Magnetic Base Dimensions 90 x 180 x 48
Noise Level Does not exceed 85dB
Vibration Level Does not exceed 2,5m/s2
Voltage 110v or 240v
