MiniBeast - Magnetbormaskin, elektrisk
Kompakt og kraftig magnetbormaskin med ø36mm kapasitet.
Med batteridrift har man den ultimate fleksibiliteten i forhold til plassen jobben skal gjøres
The

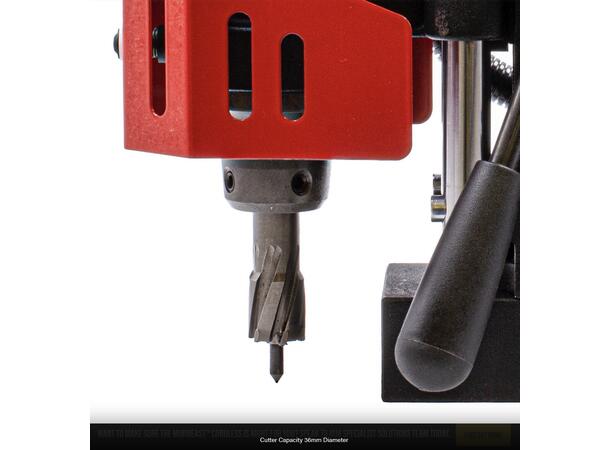

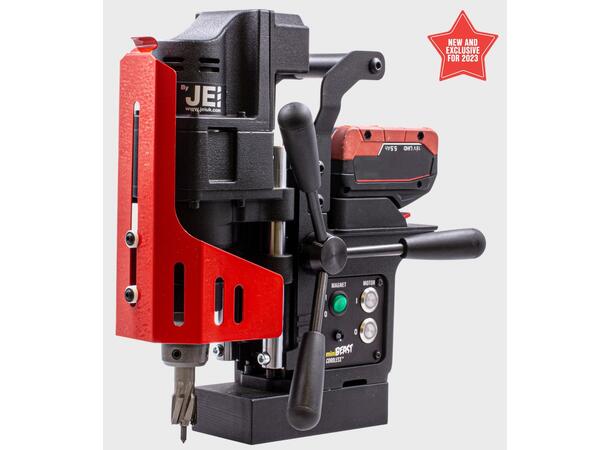

MiniBeast™ Cordless is a battery-operated, compact magnetic drilling machine
designed to drill holes with a diameter up to 36mm (1 7/16")with annular
cutters.
With twist drills the MiniBeast™ Cordless can also drill holes with a
diameter of up to 12mm (0.47").

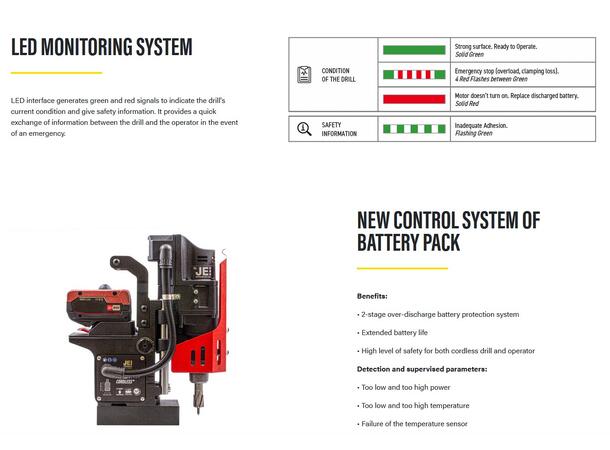

This compact drilling machine is also
equipped with a LED monitoring system that generates signals in green and red
to indicate the current condition of the drill and give safety information
Battery-operated, compact magnetic drilling machine.
- Compact and powerful – lightweight at
11.5kg (incl. 4.0Ah Battery)

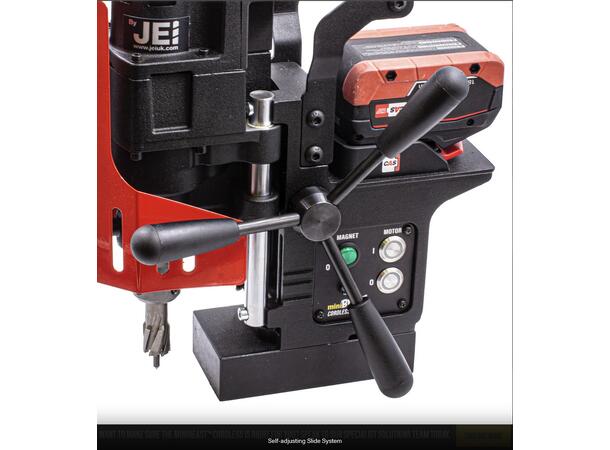

- Self-correcting slide rails – for
maintenance free operation
- Fully compatible with CAS battery units
- Equipped with LED monitoring system –
Indicates operating performance of the machine and provides safety
information when magnet not adequately engaged to material
- Overload protection – prevents misuse
of the machine
- Tilt sensor – to stop the motor if the machine
breaks away from the surface whilst in operation
- Energy saving magnetic base uses only
50% of it’s power when motor is not running
MiniBeast™
Cordless SPECIFICATIONS
|
Model
|
MiniBeast™
Cordless
|
|
Weight
with 4.0Ah Battery
|
11.5 kg
|
|
Max
Stroke
|
70mm
|
|
Cutter
Capacity
|
36mm x 2” Depth of Cut
|
|
Twist
Drill Capacity
|
12mm with optional Turbo™ Twist Drill
|
|
Motor
|
450 W
|
|
Height
Min/Max
|
330mm / 370mm Inc. Carry Handle
|
|
Minimum
Workplace Thickness
|
6mm
|
|
Length x
Width
|
316mm x
235mm
|
|
RPM
|
300 RPM
(under load)
|
|
Magnetic
Base Dimensions
|
80 x
160mm
|
|
Magnet Deadlift (on 25mm plate)
|
866 kg
on 1” Plate (8500N)
|
|
Noise
Level
|
<90dB
|
|
Vibration
Level
|
<2.5
m/s2
|
|
Voltage
|
18v DC
|
|
Part No.
|
DRILL-MBC
|
|
Shipping Weight (Incl. 4.0Ah Battery)
|
15.65 kg
|
|
Shipping
Dimensions
|
700 x
460 x 190 mm
|
