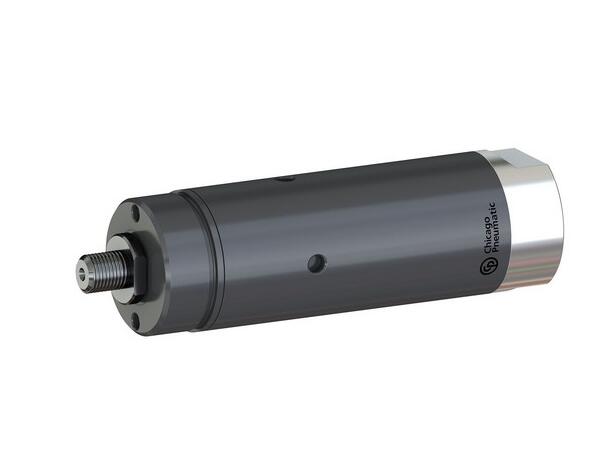

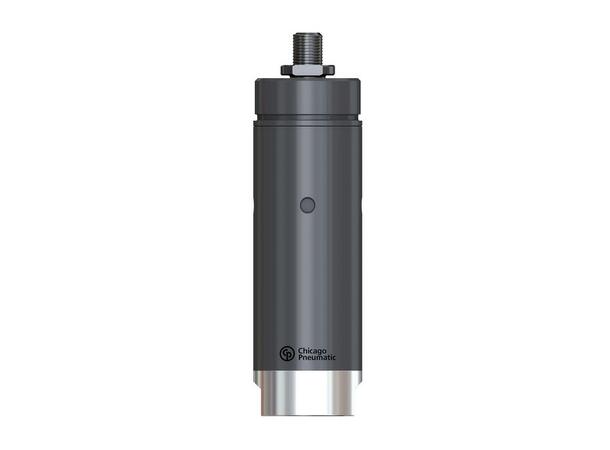

Trykkluftdrevet motor fra Chicago Pneumatic

Air Motors from Chicago Pneumatic – areas of application

Chicago Pneumatic offers a wide range of rust- and oil-free air vane motors with a power range from 0.16 kW (0.21 Hp) to 1.83 kW (2.45 Hp).

A large number of motors are available with a threaded spindle (non reversible) or a keyed spindle (reversible). Customer-specific solutions are also possible.

The air motors are resistant to dust, humidity and temperature fluctuations and can also be used in an ATEX version even under hazardous environmental conditions.

Air motors are an ideal solution for a variety of applications, even in extremely different areas such as mechanical engineering, automotive industry,

packaging, paper or printing industry, petrochemical industry, agricultural equipment, the food industry and many other applications.

Air motors have many advantages over an electric motor and are often times the only equipment that can be implemented.

Tekniske data:

Modell M25-TL-3550-ATEX

Varenr. 2051478314

Ikke reversibel modell

Spindel: gjenget spindel 3/8-24 gjenge

Motoreffekt 270Watt

Max Vrimoment 1,5Nm

Startmoment 2,3Nm

Moment v/ stopp (stall torque) 3,2Nm

Luftforbruk 5,3 l/sek

Vekt 0,55kg

Byggemål - se egen brosjyreextile
