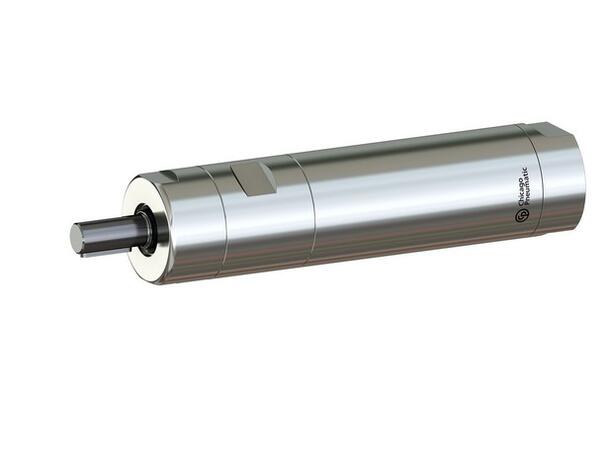

The standard pneumatic vane motors
MR25-290-KL-ATEX is compact in design, light in weight, have
Keyed shaft
shaft spindle It is suitable for building using handheld machines or
any industrial equipment.
This reversible air motor delivers a maximum
power of 160 W (0.21 hp), with a maximum torque of 21 Nm (15.5 ft.lbs)
and
290 rpm free speed and is ATEX certified Ex II 2 G Ex h IIC T6 Gb
for gas and Ex II 2 D Ex h IIIC T85°C Db for dust
Country of origin is HU. Customs tariff is 84123900
Technical Specifications
Design & Functions
Torque at max power10.5 Nm
Air inlet thread size (in)1/8
Motor Lubrication free Yes
Max dynamic air working pressure 6.3 bar
Rotation drive Reversible
Air consumption at load 5 l/s
Air inlet thread type BSP
Index of protection (IP code) IP66
Minimum starting torque 14 Nm
Max free speed range 290 rpm
