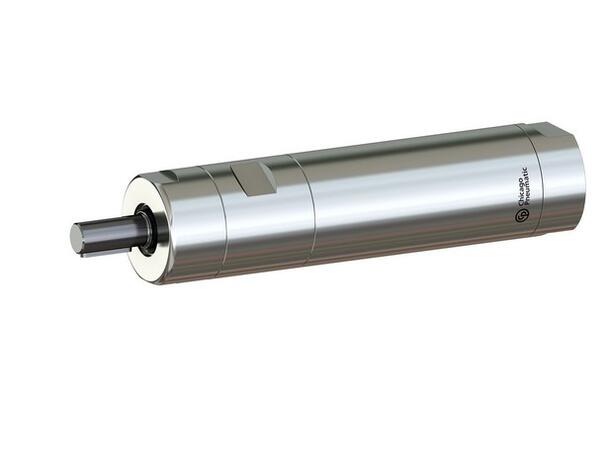

The stainless steel pneumatic vane
motors MR25-290-KSL-ATEX is compact in design, light in weight, have
kKeyed shaft shaft spindle It is suitable for building using handheld
machines or any industrial equipment.

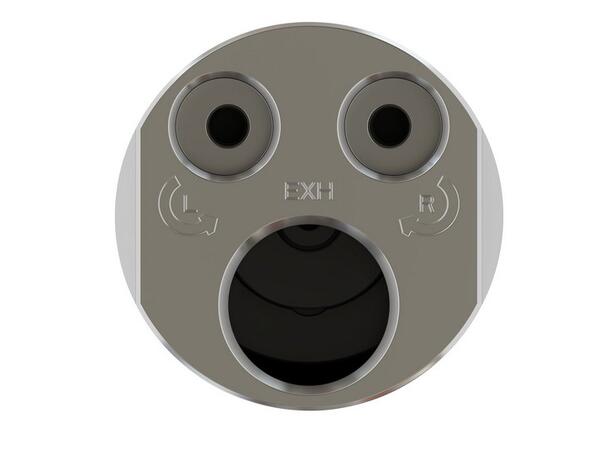

This reversible air motor
delivers a maximum power of 160 W (0.21 hp), with a maximum torque of 21
Nm (15.5 ft.lbs) and
290 rpm free speed and is ATEX certified Ex II 2 G
Ex h IIC T6 Gb for gas and Ex II 2 D Ex h IIIC T85°C Db for dust
Country of origin is HU. Customs tariff is 84123900
Technical Specifications
Design & Functions
Torque at max power10.5 Nm
Air inlet thread size (in)1/8
Motor Lubrication free Yes
Max dynamic air working pressure 6.3 bar
Rotation drive Reversible
Air consumption at load 5 l/s
Air inlet thread type BSP
Index of protection (IP code) IP66
Main Material type Stainless steel
Minimum starting torque 14 Nm
Max free speed range 290 rpm
