Stasjonært måleutstyr for overvåkning og kontroll på duggpunkt på kritiske trykkluftsystemer.
Special features:
• System ready for plug-in: Everything completely wired
• No time-consuming studying of the instruction manual
• 2 alarm contacts (230 VAC, 3 A) pre- and main alarm freely adjustable
• 4...20 mA analogue output
• Option alarm unit: Buzzer and continuous red light
Consisting of:
Digital process meter PDP Check S
Option:
Alarm unit
(Buzzer and continuous red light)

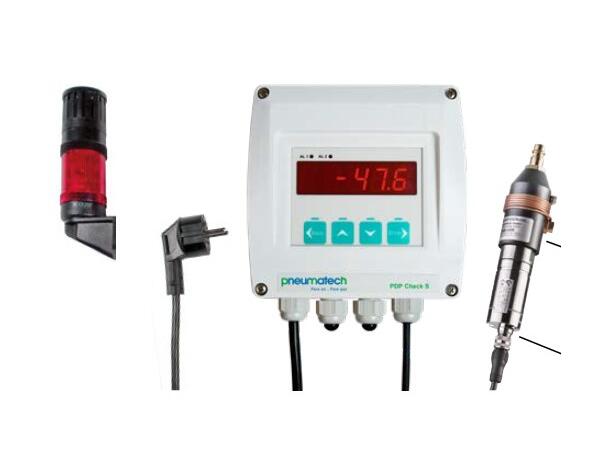

The dew-point set is wired ready to plug in at the factory. The alarm values can be set freely. The dew point sensor PDP Sens 1/2 is
extremely long-term stable and can be quickly and easily installed and removed under pressure via the screw-on measuring chamber incl
TECHNICAL DATA DISPLAY PDP Check S
Dimension:
118 x 92 x 93 mm
Display:
LED red, 7 segments,
height: 13 mm, 5 digits,
2 LED for alarm relay
Keypad:
4 keys
Input:
4...20 mA
Power supply:
230 VAC, 50/60 Hz;
Option: 24 VDC or 110
VAC 50/60 Hz
Alarm outputs:
2 x relay output, changeover
contact, 250
VAC, max. 3 A
Operating temperature:
-10...+60 °C (storage temperature -20°C...+80°C)
Alarm thresholds: freely adjustable
Hysteresis: 2 °Ctd
Analog output: 4...20 mA = -80...20 Ctd or -20...50°Ctd.
DESCRIPTION ORDER-NO.
Dew point monitoring PDP Check S2 for desiccant driers consisting of: 2255330390
PDP Check S LED display in wall housing 2255332549 PDP Sens 2 dew point sensor for desiccant driers -80°...20°Ctd incl. inspection certificate, 4…20 mA output signal (3-wire connection) and Modbus-RTU interface 2255330413 Standard measuring chamber up to 16 bar 2255460229 Connection cable for Flow/ PDP sensors, 5 m 2255460213 Dew point monitoring PDP Check S for refrigeration dryers, consisting of: 2255330387 PDP Check S LED display in wall housing 2255332549 PDP Sens 1/2 dew point sensor for refrigeration dryer -20...50°Ctd incl. inspectioncertificate, 4…20 mA output signal (3-wire connection) and Modbus-RTU interface 2255330412 Standard measuring chamber up to 16 bar 2255460229 Connection cable for Flow/ PDP sensors, 5 m 2255460213 Options: Power supply 24 VDC (instead of 230 VAC) 2255330388 Power supply 110 VAC (instead of 230 VAC) 2255330389 Alarm unit mounted at wall housing 2255460211 Alarm unit for external mounting with 5 m cable 2255460231 Calibration and adjustment: Precision calibration at -40°Ctd including ISO certificate 2255332542
PDP Sens 2 dew point sensor for desiccant driers -80°...20°Ctd incl. inspection
certificate, 4…20 mA output signal (3-wire connection) and Modbus-RTU interface 2255330413 Standard measuring chamber up to 16 bar 2255460229 Connection cable for Flow/ PDP sensors, 5 m 2255460213 Dew point monitoring PDP Check S for refrigeration dryers, consisting of: 2255330387 PDP Check S LED display in wall housing 2255332549 PDP Sens 1/2 dew point sensor for refrigeration dryer -20...50°Ctd incl. inspectioncertificate, 4…20 mA output signal (3-wire connection) and Modbus-RTU interface 2255330412 Standard measuring chamber up to 16 bar 2255460229 Connection cable for Flow/ PDP sensors, 5 m 2255460213 Options: Power supply 24 VDC (instead of 230 VAC) 2255330388 Power supply 110 VAC (instead of 230 VAC) 2255330389 Alarm unit mounted at wall housing 2255460211 Alarm unit for external mounting with 5 m cable 2255460231 Calibration and adjustment: Precision calibration at -40°Ctd including ISO certificate 2255332542
Standard measuring chamber up to 16 bar 2255460229
Connection cable for Flow/ PDP sensors, 5 m 2255460213
Dew point monitoring PDP Check S for refrigeration dryers, consisting of: 2255330387 PDP Check S LED display in wall housing 2255332549 PDP Sens 1/2 dew point sensor for refrigeration dryer -20...50°Ctd incl. inspectioncertificate, 4…20 mA output signal (3-wire connection) and Modbus-RTU interface 2255330412 Standard measuring chamber up to 16 bar 2255460229 Connection cable for Flow/ PDP sensors, 5 m 2255460213 Options: Power supply 24 VDC (instead of 230 VAC) 2255330388 Power supply 110 VAC (instead of 230 VAC) 2255330389 Alarm unit mounted at wall housing 2255460211 Alarm unit for external mounting with 5 m cable 2255460231 Calibration and adjustment: Precision calibration at -40°Ctd including ISO certificate 2255332542
PDP Check S LED display in wall housing 2255332549 PDP Sens 1/2 dew point sensor for refrigeration dryer -20...50°Ctd incl. inspectioncertificate, 4…20 mA output signal (3-wire connection) and Modbus-RTU interface 2255330412 Standard measuring chamber up to 16 bar 2255460229 Connection cable for Flow/ PDP sensors, 5 m 2255460213 Options: Power supply 24 VDC (instead of 230 VAC) 2255330388 Power supply 110 VAC (instead of 230 VAC) 2255330389 Alarm unit mounted at wall housing 2255460211 Alarm unit for external mounting with 5 m cable 2255460231 Calibration and adjustment: Precision calibration at -40°Ctd including ISO certificate 2255332542
PDP Sens 1/2 dew point sensor for refrigeration dryer -20...50°Ctd incl. inspectioncertificate, 4…20 mA output signal (3-wire connection) and Modbus-RTU interface 2255330412 Standard measuring chamber up to 16 bar 2255460229 Connection cable for Flow/ PDP sensors, 5 m 2255460213 Options: Power supply 24 VDC (instead of 230 VAC) 2255330388 Power supply 110 VAC (instead of 230 VAC) 2255330389 Alarm unit mounted at wall housing 2255460211 Alarm unit for external mounting with 5 m cable 2255460231 Calibration and adjustment: Precision calibration at -40°Ctd including ISO certificate 2255332542
Options: Power supply 24 VDC (instead of 230 VAC) 2255330388 Power supply 110 VAC (instead of 230 VAC) 2255330389 Alarm unit mounted at wall housing 2255460211 Alarm unit for external mounting with 5 m cable 2255460231 Calibration and adjustment: Precision calibration at -40°Ctd including ISO certificate 2255332542
Power supply 24 VDC (instead of 230 VAC) 2255330388 Power supply 110 VAC (instead of 230 VAC) 2255330389 Alarm unit mounted at wall housing 2255460211 Alarm unit for external mounting with 5 m cable 2255460231 Calibration and adjustment: Precision calibration at -40°Ctd including ISO certificate 2255332542
Power supply 110 VAC (instead of 230 VAC) 2255330389
Alarm unit mounted at wall housing 2255460211
Alarm unit for external mounting with 5 m cable 2255460231
Calibration and adjustment: Precision calibration at -40°Ctd including ISO certificate 2255332542
Precision calibration at -40°Ctd including ISO certificate 2255332542
Additional calibration point freely selectable 2255332543
