Size

1

Nominal volume flow at filter inlet (l/s)

21

Dimensions of inlet and outlet connections (BSP/NPT)

DN10/ø17,2

Bowl connection at the bottom (BSP)

1/8

Number of filter elements

1

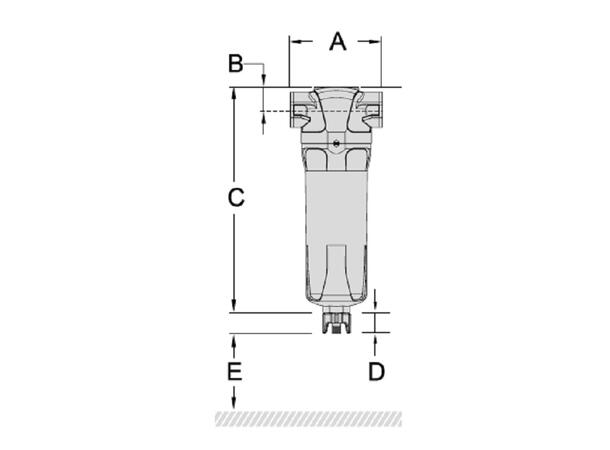

Filter dimension A (mm)

125

Filter dimension B (mm)

69

Filter dimension C (mm)

218

Drain length D (mm)

42

Service distance E (mm)

120

Filter volume ( head+bowl) (lt.)

0,8

Weight (kg)

1.6

Shipping length (mm)

460

Shipping width (mm)

130

Shipping height (mm)

125

Performance data

Size from

1 to 18

Particle removal (micron)

-

Outlet oil aerosol concentration (mg/m³)

-

Total mass efficiency (%)

-

Quality class of air at outlet (oil)

0

Initial pressure drop over filter in dry applications (bar)

0.115

Initial pressure drop over filter in wet applications (bar)

-
