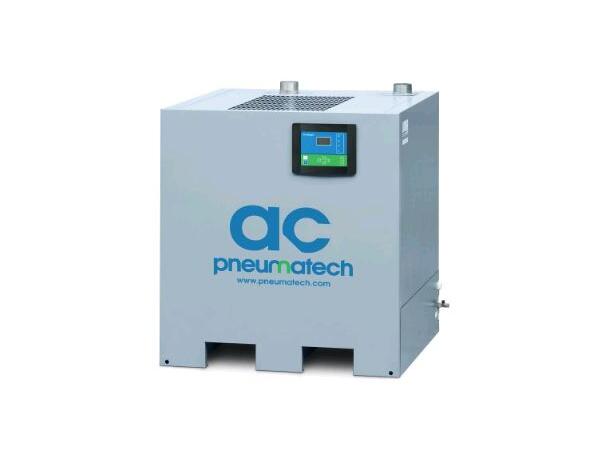

Pneumatech AD1000 kjøletørke

Pneumatech’s AD 10-3000 non-cycling refrigeration dryers are designed to protect your compressed
air system by lowering the presence of moisture in the compressed air?
With a stable dew point as low as 3°C/37°F these dryers provide a highly efficient and reliable
solution for your drying needs?

Thanks to the new controller with digital display, real time PDP monitoring is possible? T
he zero-loss electronic drains avoid compressed air losses?
The well-designed heat exchangers ensure maximum cooling efficiency, making the AD dryers
a genuine air drying solution in industrial applications?
The AD125-1250 range is equipped with the winning combination: rotary compressors and R410A refrigerant?
This combination is up to 30% more energy efficient, requires 19% less refrigerant gas and is
100% compliant with European regulation EU No 517 / 2014,
hereby significantly reducing the ecological footprint of these dryers?
Rotary compressors are moreover very reliable thanks to the low vibration levels and limited
mechanical load?
R410A guarantees stable evaporation, which makes the pressure dew point of 3°C /37°F possible

Tekniske data: AD 1000 kjøletørke
Kapasitet: 30000 l/min - 500 l/sek - 1800 m3/time
Motoreffekt 3,89kw
Elektrisk anslutning: 400V/50Hz - 3 fas
Max arbeidstrykk: 16bar
Kjølemedie: R410A
Anslutningsgjenger: 3"Male
Mål: LxBxH: 1020x1083x1526mm
Vekt: 335kg
