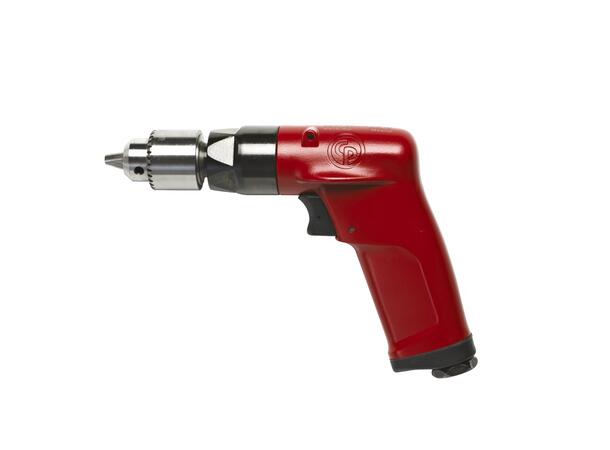

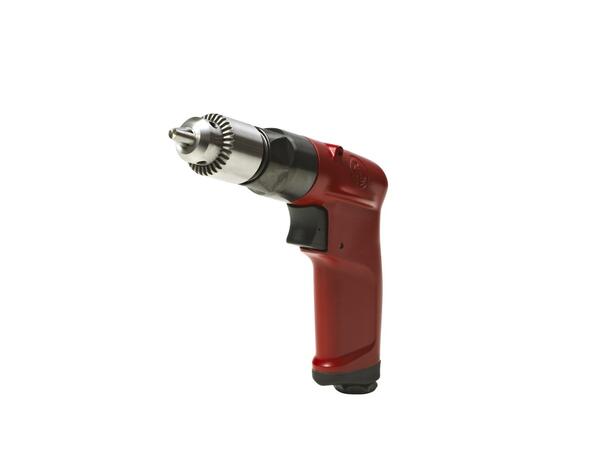

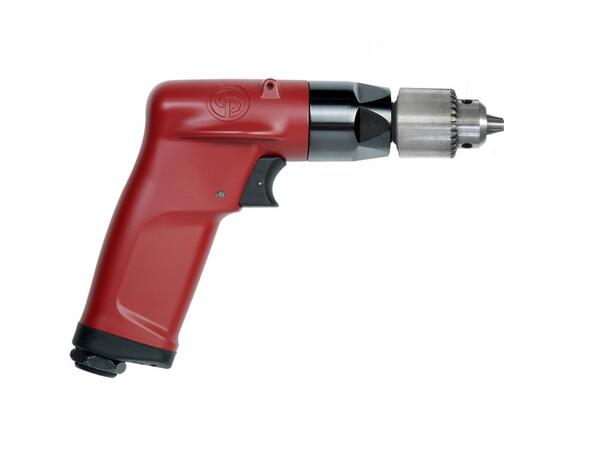

CP1014P33 Drill
Pistoldrill for industrielt bruk
Benefits
High productivity thanks to high power with great control and high quality keyed chuck
Operator comfort thanks to exclusive ergonomic features
Drills for Industrial Production designed for intensive duty and high durability
Features
1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck
Ergonomic & compact body, Quiet, Low vibrations
High power 0.5hp (375W) with excellent control by teasing throttle handle
| Model | CP1014P33 |
| Part number | 6151580030 |
| Actual air consumption | 540 l/mn |
| Air inlet thread size | 1/4 " |
| Box dimensions | 170x250x75 mm |
| Chuck capacity | 6.5 mm |
| Collet / spindle size | |
| Free speed | 3300 rpm |
| Free speed air consumption | 10,8 l/s |
| Length | 160 mm |
| Min. hose size | 10 mm |
| Net weight | 0.54 kg |
| Power | 375 W |
| Sound Power | 89 db(A) |
| Sound pressure | 78 db(A) |
| Stall torque | 3.5 Nm |
| Vibration | <2.5 m/s² |
| Vibration ISO | ISO-28927-5 |
| Vibration uncertainty (K) | - m/s² |
