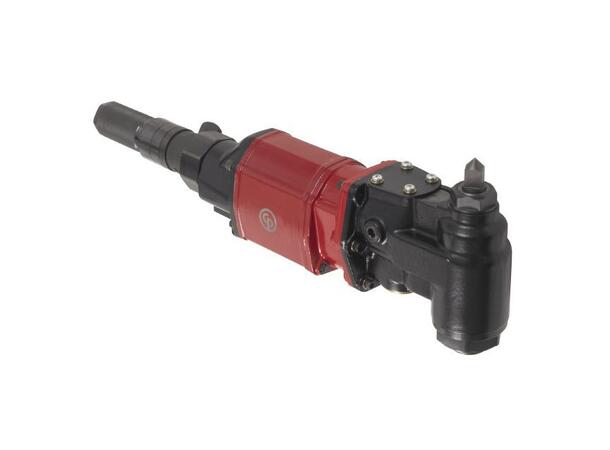

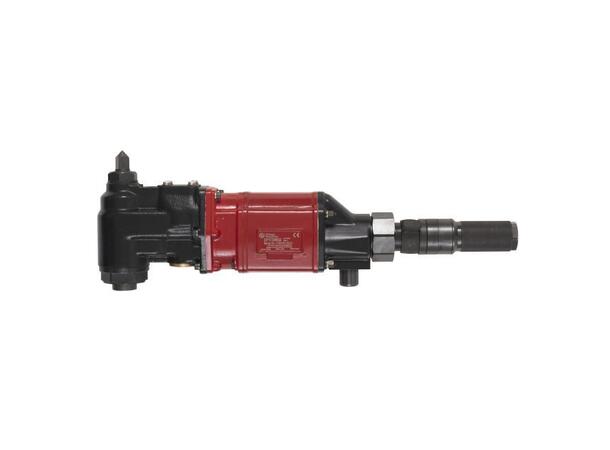

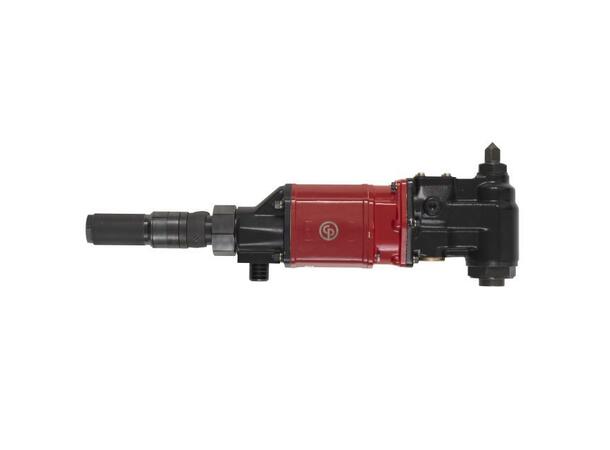

CP1720R32 Vinkelboremaskin m/MK3
Benefits
Designed for super intensive duty, high durability and precision in industrial maintenance and production applications
Ideal for drilling, reaming & tapping of mild steel, cast iron
Features
1-1/4" (32 mm) reversible corner drill, 350 rpm of free speed
Powerfull 2.2 hp (1,630 W) motor
Morse Taper No.3 drill socket
Good for drilling up to 1-1/4" (32 mm), reaming & tapping up to 1" (25 mm)
Self Return rolling throttle ensures the safety control
Excellent durable gearbox ensures the strong drilling
| Model | CP1720R32 |
| Part number | 6151580260 |
| Actual air consumption | 30 l/s |
| Air inlet thread size | 1/2 " |
| Chuck capacity | 32 mm |
| Collet / spindle size | |
| Free speed | 350 rpm |
| Length | 578 mm |
| Min. hose size | 19 mm |
| Net weight | 13.5 kg |
| Power | 1630 W |
| Sound Power | 115 db(A) |
| Sound pressure | 104 db(A) |
| Stall torque | 177 Nm |
| Vibration | <2.5 m/s² |
| Vibration ISO | ISO-28927-5 |
| Vibration uncertainty (K) | 1.4 m/s² |
