CP6130-T70 1-1/2Muttertrekker

12000m, Hull i drivtapp,T-modell

Varenr: 6151590010
CP6130-T70  1-1/2Muttertrekker 12000m, Hull i drivtapp,T-modell CP6130-T70  1-1/2Muttertrekker 12000m, Hull i drivtapp,T-modell
181 308,-
Bestillingsvare (4 dager)

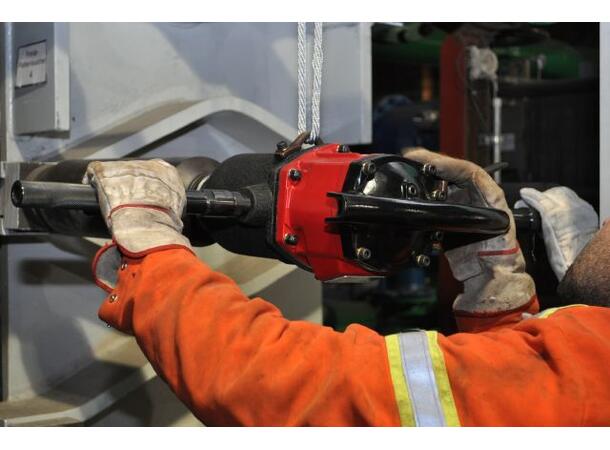

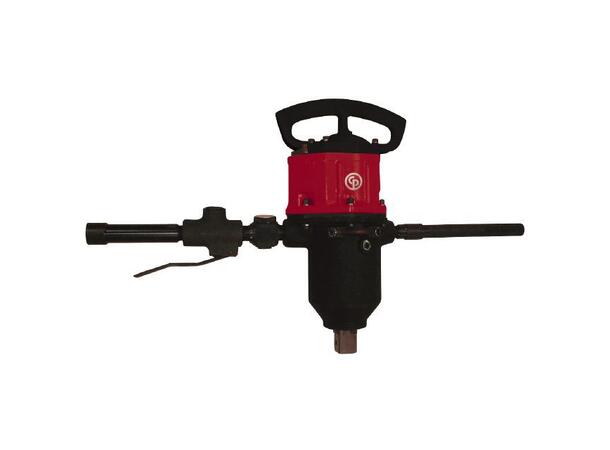

CP6130-T70 Muttertrekker



Ultra Heavy duty muttertrekker til bruk i krevende applikasjoner


Benefits

Incredible breaking torque (up to M56) for Industrial Maintenance & Production applications
Extreme durability: resistant parts, reliable mechanisms & robust housing
Operator comfort: smooth control, low vibrations & limited noise
Compact 3-parts construction for easy maintenance

Features

1-1/2" Super Duty T-Handle
Reliable Double Rocking Dog clutch
Durable aluminum body & clutch housing
5-positions regulator, progressive trigger & Easy reverse
Removable dead handle and comfortable Top handles
Suspension hole for easy hoist/balancer hooking

ModelCP6130-T70
Part number6151590010
Actual air consumption31.76 l/s
Air inlet thread size1 "
Blows per minute900
Bolt sizeM56 mm
Box dimensions280x540x310 mm
Clutch typeDouble Rocking Dog
Free speed4000 rpm
Handle typeT-Handle
Length500 mm
Maximum Torque (reverse)12500 Nm
Min. hose size19 mm
Net weight33 kg
Power/weight ratio378.8 Nm/kg
Side to center80 mm
Socket retainerHole
Sound Power115 db(A)
Sound pressure104 db(A)
Square drive1 1/2 "
Vibration4.7 m/s²
Vibration ISOISO-28927-2
Vibration uncertainty (K)1.7 m/s²
Working Torque Range (fwd)3,300 - 7,100 Nm
