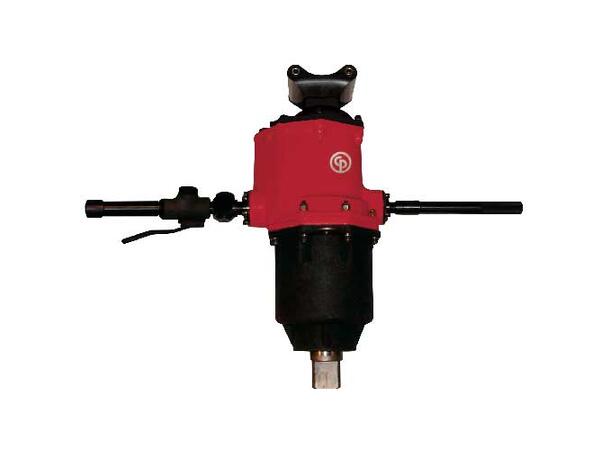

CP6240-T120 Muttertrekker 2-1/2"
Benefits

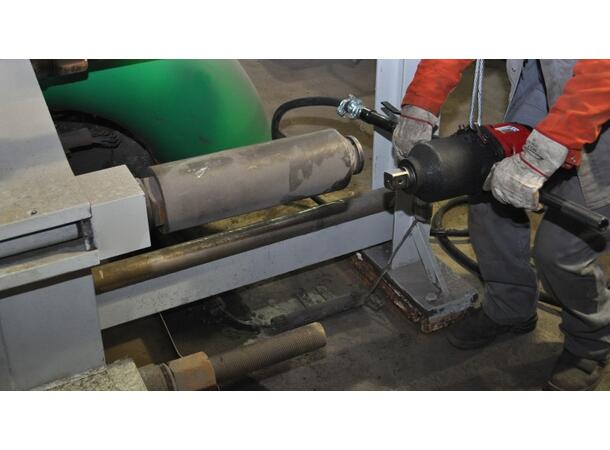

Incredible breaking torque (up to M72) for Industrial Maintenance & Production applications
Extreme durability: Resistant parts, reliable mechanisms & robust housing
Operator comfort: smooth control, low levels of vibration & limited noise
Compact 3-parts construction for easy maintenance
Features
2-1/2" Super Duty T-Handle
Reliable Double Rocking Dog clutch
Durable aluminum body & clutch housing
6-positions regulator, progressive trigger & Easy reverse
Removable dead handle and comfortable Top handles
Suspension hole for easy hoist/balancer hooking
| Model | CP6240-T120 |
| Part number | 6151590020 |
| Actual air consumption | 35.34 l/s |
| Air inlet thread size | 1 " |
| Blows per minute | 800 |
| Bolt size | M72 mm |
| Box dimensions | 285x645x335 mm |
| Clutch type | Double Rocking Dog |
| Free speed | 3000 rpm |
| Handle type | T-Handle |
| Length | 610 mm |
| Maximum Torque (reverse) | 25000 Nm |
| Min. hose size | 19 mm |
| Net weight | 60 kg |
| Over carton | - mm |
| Power/weight ratio | 416.7 Nm/kg |
| Side to center | 90 mm |
| Socket retainer | Hole |
| Sound Power | 118 db(A) |
| Sound pressure | 107 db(A) |
| Square drive | 2 1/2 " |
| Vibration | 4.5 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 1 1/2 m/s² |
| Working Torque Range (fwd) | 5,100 - 12,400 Nm |
