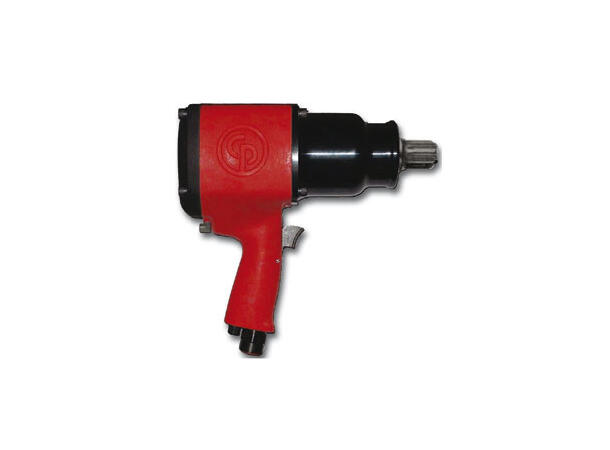

CP0611P-RLS SP #5 Muttertrekker
Benefits
Best impact to target big bolts on very demanding industries thanks to Spline #5
Spline #5: avoid loss of torque, reduce vibrations, increase durability of anvil
Operator comfort and control thanks to perfect ergonomic design even at VERY high torque
Constant & progressive Torque due to the 2-Jaw clutch
Unmatched durability with reliable mechanism & durable housing
Excellent for Heavy Industrial Maintenance Production applications
Features
Super industrial impact with spline #5
Reliable 2-jaw clutch
Aluminum body & steel clutch housing
Protective & Durable reverse
Compact 3-part construction & easy maintenance
360° adjustable D-type side handle
| Model | CP0611P RLS |
| Part number | 6151590060 |
| Actual air consumption | 22.6 l/s |
| Air inlet thread size | 1/2 " |
| Blows per minute | 1020 |
| Bolt size | M36 mm |
| Clutch type | 2-jaw clutch |
| Free speed | 3500 rpm |
| Handle type | Pistol |
| Length | 272 mm |
| Maximum Torque (reverse) | 3790 Nm |
| Net weight | 10.5 kg |
| Power/weight ratio | 361 Nm/kg |
| Side to center | 46 mm |
| Socket retainer | #5 spline |
| Sound Power | 113 db(A) |
| Sound pressure | 102 db(A) |
| Square drive | #5 spline " |
| Vibration | 16.8 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 4.7 m/s² |
| Working Torque Range (fwd) | 1,220 - 2,440 Nm |
