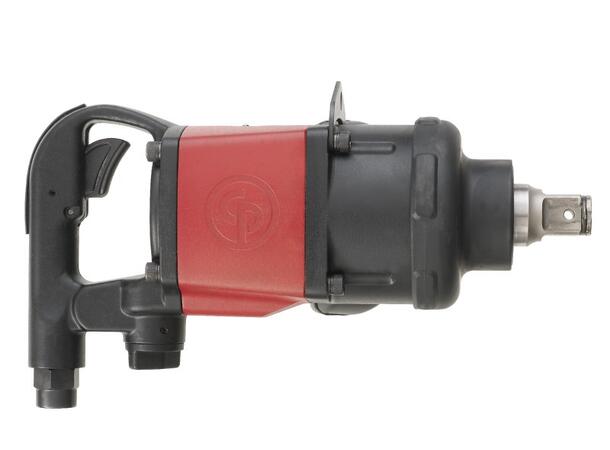

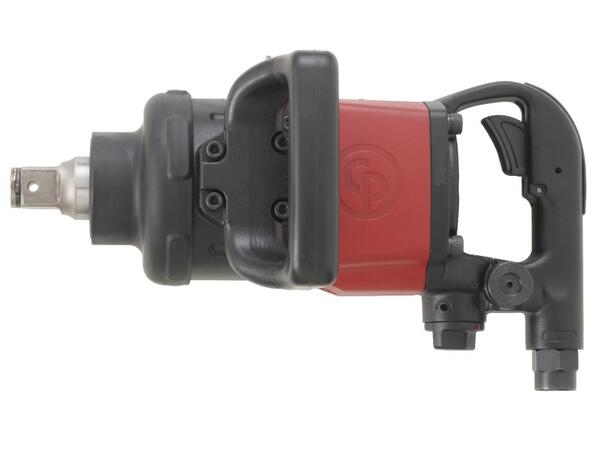

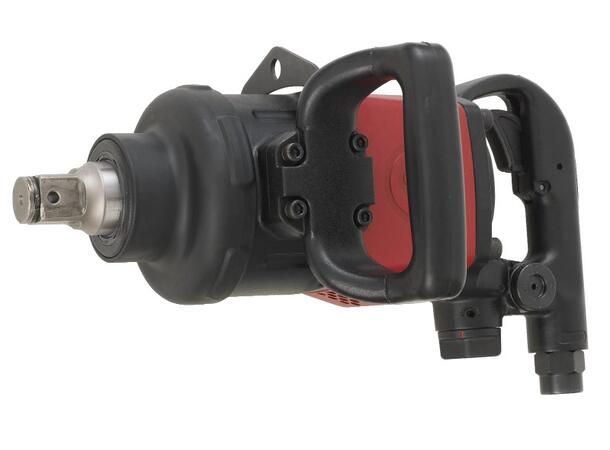

CP6920-D24 Kraftig Muttertrekker 1"
Benefits
Ideal for a variety of heavy Industrial Maintenance applications
Reliable and powerful oil bath Pinless Rocking Dog clutch
Operator comfort with many ergonomic features
3-part construction for reducing downtime maintenance
Features
1" Industrial D-Handle impact wrench with Dual (hole & ring) type socket retainer
Reliable oil bath pinless rocking dog clutch
Durable Aluminum body and rubber protective cover on clutch housing
Motor with reinforced steel plates for unmatched durability
Comfortable D-type side handle with Rubber grip
| Model | CP6920-D24 |
| Part number | 6151590080 |
| Actual air consumption | 19 l/s |
| Air inlet thread size | 1/2 " |
| Blows per minute | 650 |
| Clutch type | Pinless Rocking Dog - Oil bath |
| Free speed | 5000 rpm |
| Handle type | D-Handle Inside Trigger |
| Length | 360 mm |
| Maximum Torque (reverse) | 2600 Nm |
| Min. hose size | 13 mm |
| Net weight | 10.3 kg |
| Power/weight ratio | 252.4 Nm/kg |
| Side to center | 55 mm |
| Socket retainer | Dual (hole+friction) |
| Sound Power | 111 db(A) |
| Sound pressure | 100 db(A) |
| Square drive | 1 " |
| VST2 | 39 |
| Vibration | 8.4 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 2.8 m/s² |
| Working Torque Range (fwd) | 500 - 2,100 Nm |
