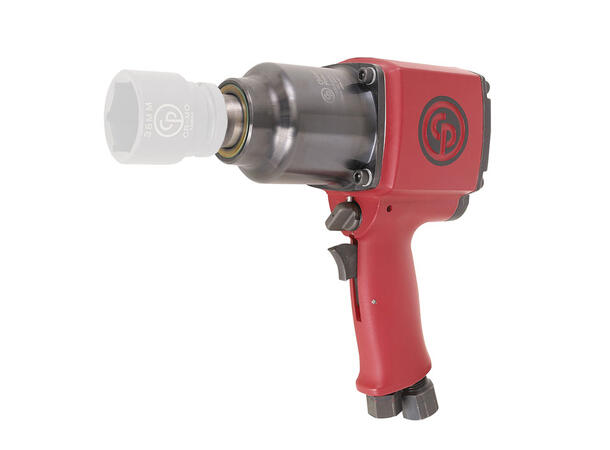

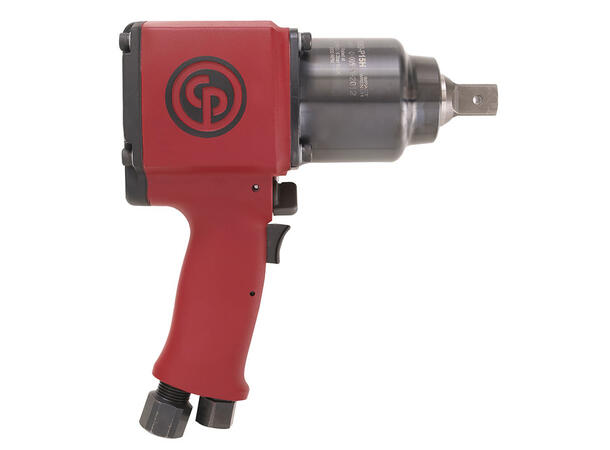

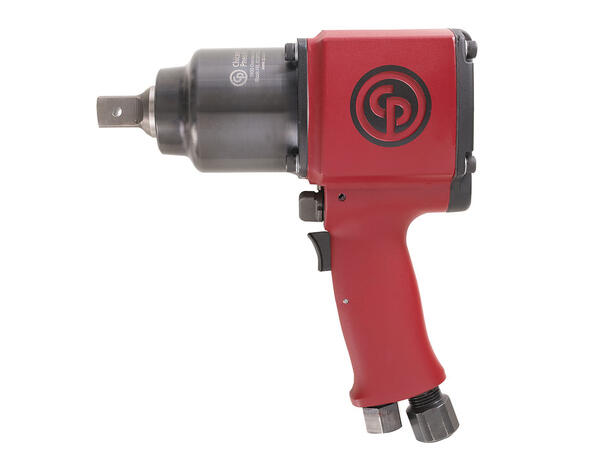

CP6060-P15H
Muttertrekker
Benefits
Market leading comfort thanks to
the 2-Jaw clutch
Superior Quality resisting to worst conditions and usages
Best 3/4" impact for Industrial Maintenance and Production applications
Features
Super Industrial 3/4" impact
wrench
Reliable 2-jaw clutch
Aluminum body & steel clutch housing
Durable reverse valve & steel trigger
Compact 3-part construction & easy maintenance
Hole type socket retainer with O-ring for Safety
| Model | CP6060-P15H |
| Part number | 6151590090 |
| Actual air consumption | 25 l/s |
| Air inlet thread size | 3/8 " |
| Blows per minute | 1100 |
| Bolt size | M27 mm |
| Box dimensions | 295*295*115 mm |
| Clutch type | 2-jaw clutch |
| Free speed | 4000 rpm |
| Free speed air consumption | 35 l/s |
| Handle type | Pistol |
| Length | 222 mm |
| Maximum Torque (reverse) | 1490 Nm |
| Min. hose size | 13 mm |
| Net weight | 5.3 kg |
| Over carton | 310*310*245 mm |
| Power/weight ratio | 281.1 Nm/kg |
| Side to center | 37 mm |
| Socket retainer | Hole |
| Sound Power | 103 db(A) |
| Sound pressure | 92 db(A) |
| Square drive | 3/4 " |
| VST2 | 35 |
| Vibration | 13.9 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 4.1 m/s² |
| Working Torque Range (fwd) | 270 - 1220 Nm |
