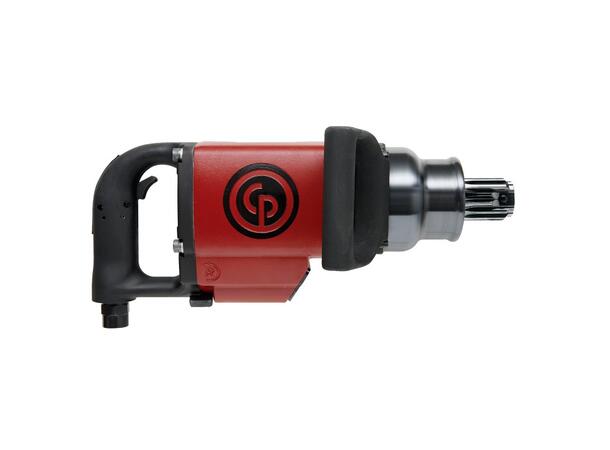

CP6120-D35L Muttertrekker SP #5
Benefits
Unbeatable combination of power and ergonomics
Extremely low lateral vibrations for best comfort and safety
Excellent durability
The reference tool for the most demanding applications in Energy and Metal working segments
Features
Premium Industrial spline #5 impact wrench
CP:s 2-Jaw clutch for superior ergonomics and productivity
Very robust steel clutch housing and aluminum motor housing
Extremely comfortable handle and adjustable support handle
Possibility to change inside/outside trigger, parts included in the box
Reverse biased 15%, possiblity to change to forward biased by turning around the air motor cylinder
| Model | CP6120-D35L |
| Part number | 6151590130 |
| Actual air consumption | 28.3 l/s |
| Air inlet thread size | 1/2 " |
| Blows per minute | 960 |
| Box dimensions | 505x240x145 mm |
| Clutch type | 2-jaw clutch |
| Free speed | 3500 rpm |
| Free speed air consumption | 51.5 l/s |
| Handle type | D-Handle Inside Trigger |
| Length | 420 mm |
| Maximum Torque (reverse) | 4880 Nm |
| Min. hose size | 19 mm |
| Net weight | 15.65 kg |
| Side to center | 54 mm |
| Socket retainer | #5 spline |
| Sound Power | 108 db(A) |
| Sound pressure | 97 db(A) |
| Square drive | #5 spline " |
| Vibration | 21.8 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 11.8 m/s² |
| Working Torque Range (fwd) | 815 - 2,710 Nm |
