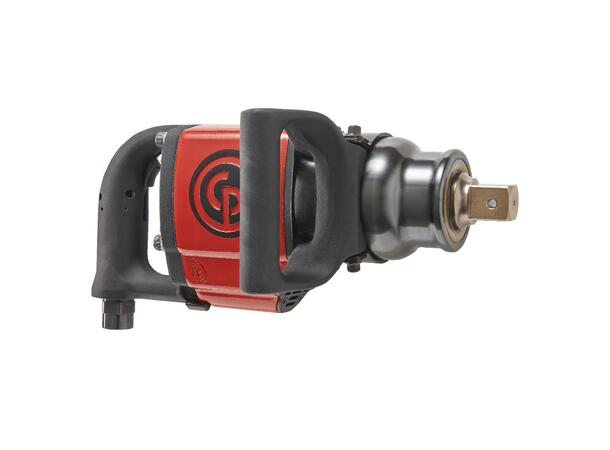

CP0611-D28H Muttertrekker
Heavy duty maskin til bruk i
krevende applikasjoner
Benefits
Best 1" impact to loosen big
bolts on very demanding industries
Operator comfort and control thanks to perfect ergonomic design even at VERY
high torque
Progressive torque thanks to the 2-Jaw clutch
Unmatched durability with reliable mechanism & durable housing
Ideal for Heavy Industrial Maintenance and Production applications
Features
Super Industrial 1" impact
wrench
Reliable 2-jaw clutch with the highest Blows per Minutes
Full Teasing (inside) trigger with durable reverse
Durable aluminum body & indestructible steel clutch housing
Compact 3-part construction & easy maintenance
Hole type socket retainer with O-ring
360° adjustable D-type side handle
| Model | CP0611-D28H |
| Part number | 6151590160 |
| Actual air consumption | 32 l/s |
| Air inlet thread size | 1/2 " |
| Blows per minute | 1020 |
| Bolt size | M36 mm |
| Box dimensions | 505x240x145 mm |
| Clutch type | 2-jaw clutch |
| Free speed | 3500 rpm |
| Free speed air consumption | 55 l/s |
| Handle type | D-Handle |
| Length | 360 mm |
| Maximum Torque (reverse) | 3790 Nm |
| Min. hose size | |
| Net weight | 10.4 kg |
| Power/weight ratio | 364.4 Nm/kg |
| Side to center | 46 mm |
| Socket retainer | Hole |
| Sound Power | 110 db(A) |
| Sound pressure | 99 db(A) |
| Square drive | 1 " |
| Vibration | 18 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 4.1 m/s² |
| Working Torque Range (fwd) | 1220 - 2440 Nm |
