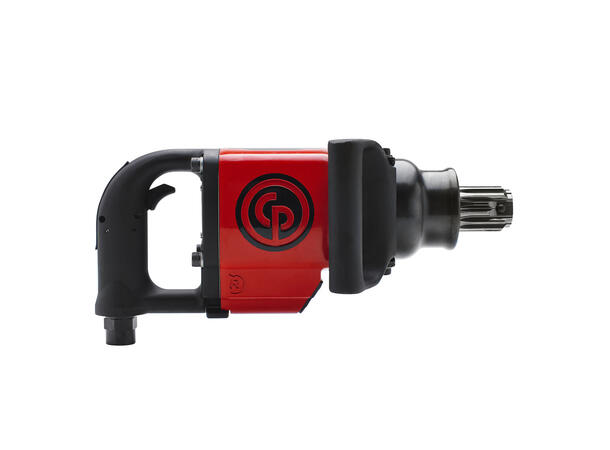

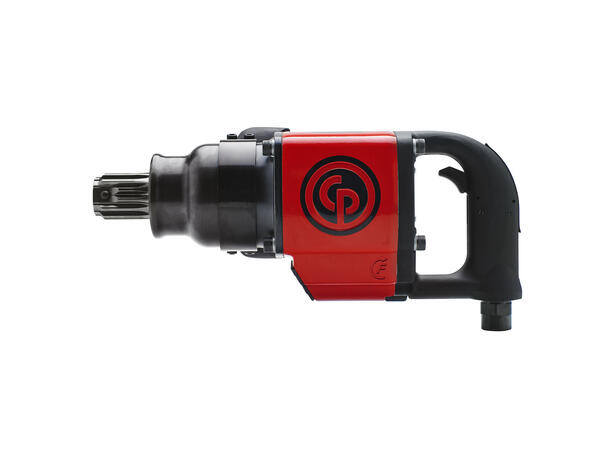

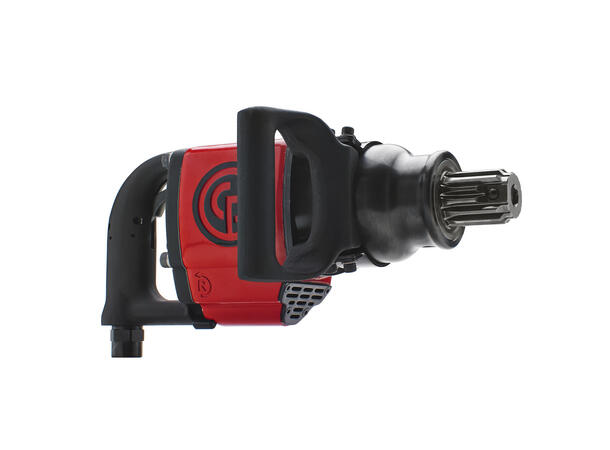

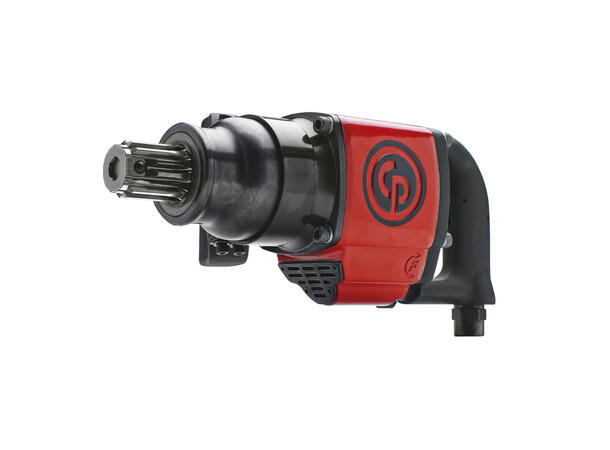

CP0611-D28L SP #5 Muttertrekker
Benefits
Best impact to loosen big bolts on very demanding industries thanks to Spline #5
Spline #5: avoid loss of torque, reduce vibrations, increase durability of anvil
Operator comfort and control thanks to perfect ergonomic design even at VERY high torque
Progressive torque thanks to the 2-Jaw clutch
Unmatched durability with reliable mechanism & durable housing
Ideal for Heavy Industrial Maintenance and Production applications
Features
Super Industrial impact with spline #5
Reliable 2-jaw clutch with the highest Blows per Minutes
Full Teasing (inside) trigger with durable reverse
Durable aluminum body & indestructible steel clutch housing
Compact 3-part construction & easy maintenance
Hole type socket retainer with O-ring
360° adjustable D-type side handle
Steel internal trigger
| Model | CP0611-D28L |
| Part number | 6151590170 |
| Actual air consumption | 32 l/s |
| Air inlet thread size | 1/2 " |
| Blows per minute | 1020 |
| Box dimensions | 505x240x145 mm |
| Clutch type | 2-jaw clutch |
| Free speed | 3500 rpm |
| Free speed air consumption | 55 l/s |
| Handle type | D-Handle |
| Length | 360 mm |
| Maximum Torque (reverse) | 3790 Nm |
| Min. hose size | |
| Net weight | 10.4 kg |
| Side to center | 46 mm |
| Socket retainer | Hole |
| Sound Power | 110 db(A) |
| Sound pressure | 99 db(A) |
| Square drive | #5 spline " |
| Vibration | 18 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 4.1 m/s² |
| Working Torque Range (fwd) | 1,220 - 2,440 Nm |
