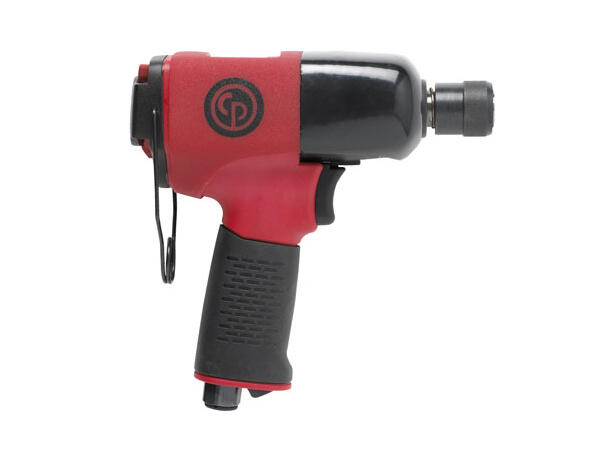

CP8232-QC Muttertrekker
Benefits
Very low noise, very limited
vibration and lightweight for operator comfort
Powerful but easy to control for assembly/disassembly operations
Compact for easy access in confined areas
Durable and reliable impact for Industrial Maintenance and Production
applications
Features
7/16" Hexagonal Quick Change
impact wrench
Powerful & durable twin hammer clutch
Composite body and aluminum clutch housing
3 power settings in forward & full power in reverse
Protective cover & suspension bail
Progressive trigger & Rubber grip
| Model | CP8232-QC |
| Part number | 6151590190 |
| Actual air consumption | 10 l/s |
| Air inlet thread size | 1/4 " |
| Blows per minute | 1250 |
| Box dimensions | 70 x 235 x 200 mm |
| Clutch type | Twin hammer |
| Free speed | 11500 rpm |
| Handle type | Pistol |
| Length | 177 mm |
| Maximum Torque (reverse) | 450 Nm |
| Min. hose size | 10 mm |
| Net weight | 1.4 kg |
| Over carton | 360 x 245 x 410 mm |
| Power/weight ratio | 321.4 Nm/kg |
| Side to center | 30 mm |
| Socket retainer | Quick change |
| Sound Power | 100 db(A) |
| Sound pressure | 89 db(A) |
| Square drive | 7/16 Hex. " |
| Vibration | 6.6 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 3.2 m/s² |
| Working Torque Range (fwd) | 80 - 400 Nm |
