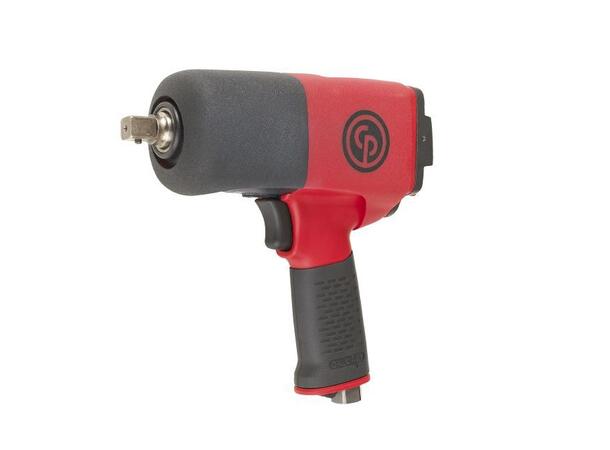

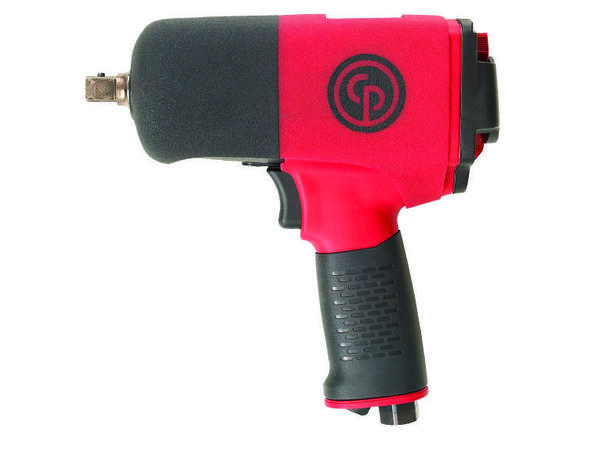

CP8525-P Muttertrekker
Særdeles kraftig muttertrekker med lavt støynivå
og god balanse. Kompositt hus og magnesium clutch-hus. Kraftregulator med
3 nivåer samt revers.
Benefits
Very low noise level, limited
vibration and lightweight for operator comfort
Powerful and easy to control for precise assembly jobs
Durable and reliable impact for Industrial Maintenance and Production
applications
Multi-purpose tool for a large variety of applications
Features
1/2" impact with pin retainer
Powerful & durable twin hammer clutch
Composite body and aluminum clutch housing
3 power settings in forward & full power in reverse
Protective cover & suspension bail
Progressive trigger & Rubber grip
| Model | CP8252-P |
| Part number | 6151590210 |
| Actual air consumption | 12 l/s |
| Air inlet thread size | 1/4 " |
| Blows per minute | 1400 |
| Box dimensions | 90 x 240 x 220 mm |
| Clutch type | Twin hammer |
| Free speed | 9000 rpm |
| Handle type | Pistol |
| Length | 200 mm |
| Maximum Torque (reverse) | 950 Nm |
| Min. hose size | 10 mm |
| Net weight | 2 kg |
| Over carton | 460 x 250 x 230 mm |
| Power/weight ratio | 475 Nm/kg |
| Side to center | 35 mm |
| Socket retainer | Pin retainer |
| Sound Power | 105 db(A) |
| Sound pressure | 94 db(A) |
| Square drive | 1/2 " |
| VST2 | 17.5 |
| Vibration | 8.8 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 3.6 m/s² |
| Working Torque Range (fwd) | 150 - 750 Nm |
