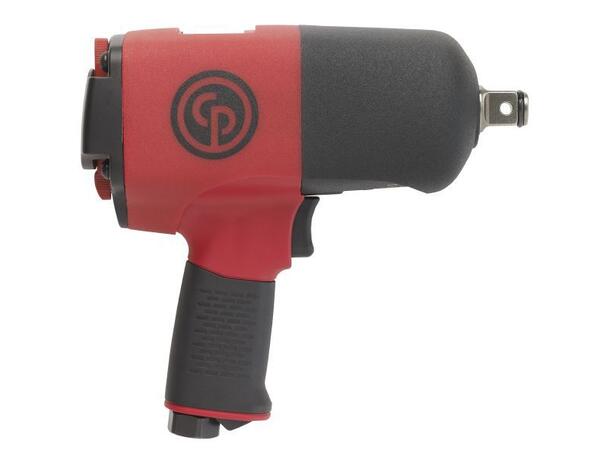

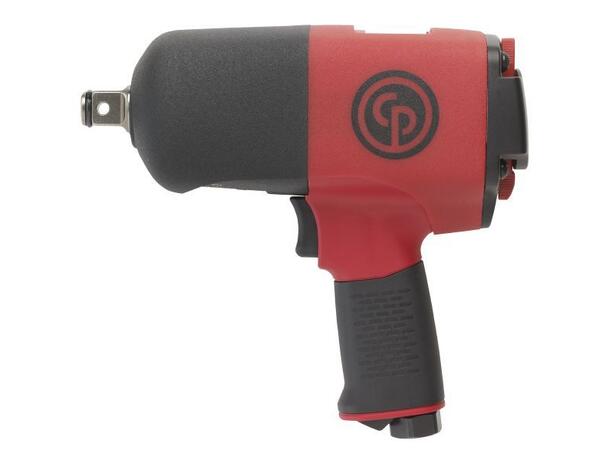

CP8272-D Muttertrekker
Meget kraftig 3/4"
Muttertrekker
Høy effekt, lav vekt og lite støy kjennetegner
denne serien fra CP.
Benefits
Durable and reliable impact for
industrial Maintenance and Production applications
Low noise and vibration levels and lightweight increase operator comfort
Powerful and easy to control for precise assembly jobs
Multi-purpose tool for versatile applications
Features
3/4" impact with dual
retainer (hole + ring)
Powerful & durable twin hammer clutch
Composite body and aluminum clutch housing
3 power settings in forward & full power in reverse
Protective cover & reinforced structure
Progressive trigger & rubber grip
Suspension hook available in option
| Model | CP8272-D |
| Part number | 6151590260 |
| Actual air consumption | 18 l/s |
| Air inlet thread size | 3/8 " |
| Blows per minute | 1000 |
| Box dimensions | 110 x 295 x 260 mm |
| Clutch type | Twin hammer |
| Free speed | 6500 rpm |
| Handle type | Pistol |
| Length | 230 mm |
| Maximum Torque (reverse) | 1650 Nm |
| Min. hose size | 13 mm |
| Net weight | 3.65 kg |
| Over carton | 230 x 310 x 270 mm |
| Power/weight ratio | 500 Nm/kg |
| Side to center | 40 mm |
| Socket retainer | Dual (hole+friction) |
| Sound Power | 107 db(A) |
| Sound pressure | 96 db(A) |
| Square drive | 3/4 " |
| VST2 | 32.5 |
| Vibration | 15.5 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 6.8 m/s² |
| Working Torque Range (fwd) | 250 - 1,250 Nm |
