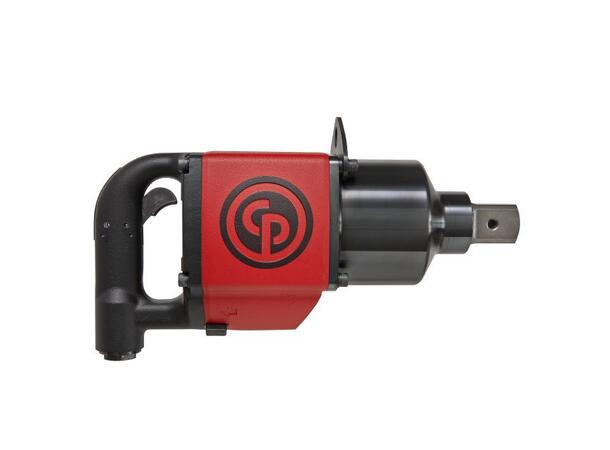

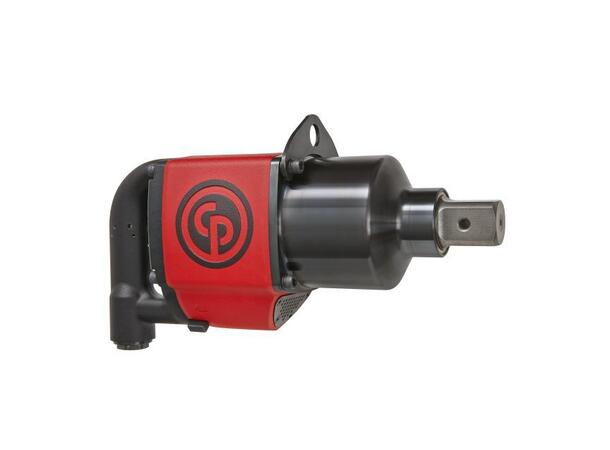

CP6135-D80 Muttertrekker
Ultra Heavy duty muttertrekker til bruk i krevende
applikasjoner
Benefits
Monster Power for the light
weight and compact size
Premium quality for the most demanding applications
Smooth operation thanks to the teasing trigger
Features
Durable Pinless Rocking Dog clutch
Robust aluminum body & Steel clutch housing
Reversible and teasing steel trigger
| Model | CP6135-D80 |
| Part number | 6151590380 |
| Actual air consumption | 40 l/s |
| Air inlet thread size | 1/2 " |
| Blows per minute | 750 |
| Bolt size | M48 mm |
| Box dimensions | 220 x 460 x 280 mm |
| Clutch type | Pinless Rocking Dog |
| Free speed | 2800 rpm |
| Handle type | D-Handle Inside Trigger |
| Length | 408 mm |
| Maximum Torque (reverse) | 8000 Nm |
| Min. hose size | 19 mm |
| Net weight | 16 kg |
| Power/weight ratio | 500 Nm/kg |
| Side to center | 67.5 mm |
| Socket retainer | Hole |
| Sound Power | 109 db(A) |
| Sound pressure | 98 db(A) |
| Square drive | 1 1/2 " |
| Vibration | 13.6 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 2.2 m/s² |
| Working Torque Range (fwd) | 1,000 - 5,500 Nm |
