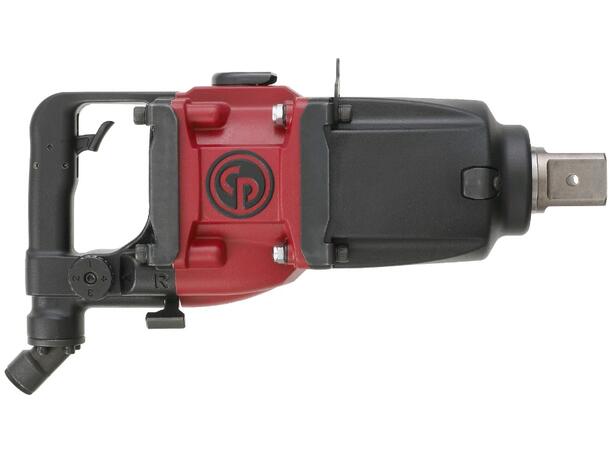

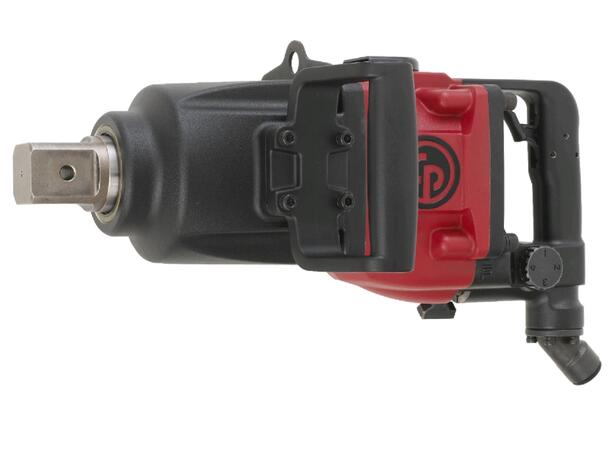

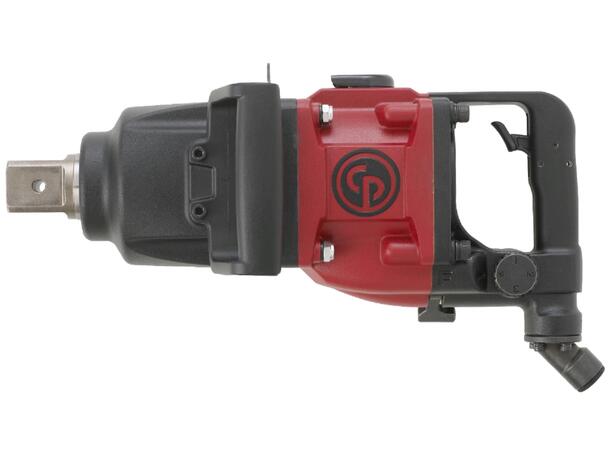

CP6930-D35 Muttertrekker 1-1/2"

Særdeles kraftig, industri, anlegg

Varenr: 6151590390
CP6930-D35 Muttertrekker 1-1/2" Særdeles kraftig, industri, anlegg CP6930-D35 Muttertrekker 1-1/2" Særdeles kraftig, industri, anlegg CP6930-D35 Muttertrekker 1-1/2" Særdeles kraftig, industri, anlegg CP6930-D35 Muttertrekker 1-1/2" Særdeles kraftig, industri, anlegg
62 586,-
Bestillingsvare (4 dager)

CP6930-D35 Muttertrekker



Kraftig 1-1/2" Muttertrekker



These tools are suitable for high production rates such as those on production/ assembly lines, where high durability is used and the tools are used frequently.



Torque ranges should be used as a guide only. Final torque will depend on the joint, operating pressure and drive accessories.

Benefits

Powerful and durable twin hammer clutch with oil bath
Robust aluminum housing with steel trigger and protective plate in the front
Operator comfort and control with 4-positions regulator and side D-handle

Features

1-1/2" industrial impact wrench with hole type socket retainer
Durable twin hammer clutch with oil bath
Robust aluminum body & clutch housing
Reversible D-type side handle
Reversible and teasing steel trigger
4-settings power regulator
Rotative air exhaust
Removable suspension hook

ModelCP6930-D35
Part number6151590390
Actual air consumption30 l/s
Air inlet thread size1/2 "
Blows per minute850
Bolt sizeM40 mm
Clutch typeTwin hammer oil bath
Free speed4300 rpm
Free speed air consumption47 l/s
Handle typeD-Handle Inside Trigger
Length440 mm
Maximum Torque (reverse)3900 Nm
Min. hose size19 mm
Net weight14.35 kg
Power/weight ratio271.8 Nm/kg
Side to center65 mm
Socket retainerHole
Sound Power112.5 db(A)
Sound pressure101.5 db(A)
Square drive1 1/2 "
VST2100
Vibration15.1 m/s²
Vibration ISOISO-28927-2
Vibration uncertainty (K)5 1/2 m/s²
Working Torque Range (fwd)600 - 2,650 Nm



Produktinformasjon

Verktøy Muttertrekker
