CP6763
Muttertrekker
Benefits
Compact and Versatile for
Industrial Maintenance applications
Very hard hitting twin hammer clutch
Robust for the roughest environments and the toughest applications
Features

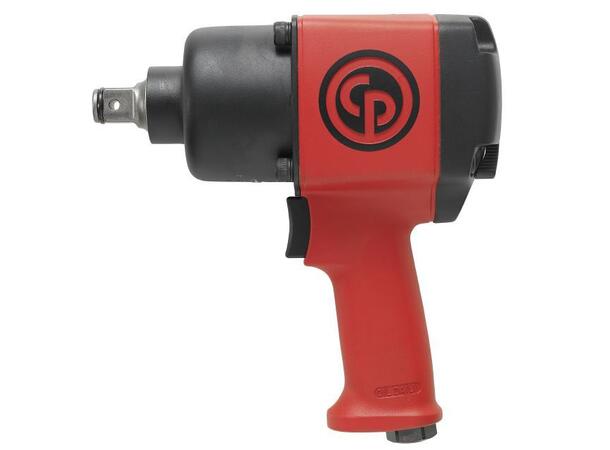

3/4" impact wrench with Dual
retainer
Very powerful twin hammer clutch
Robust Steel Clutch housing
Powerful Twin hammer clutch: 1,200 ft.lbs (1,630 Nm)

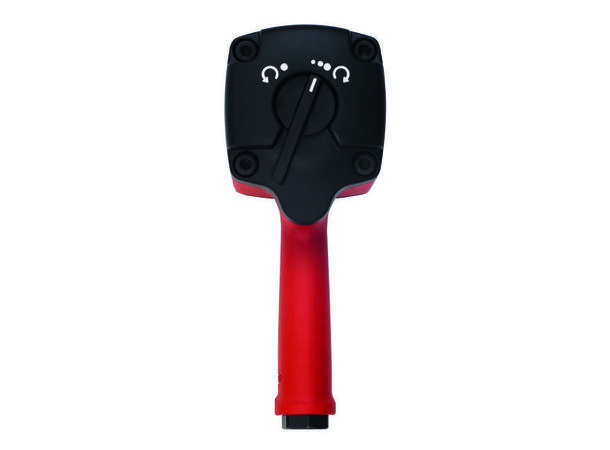

Combined power regulator with forward/reverse
| Model | CP6763 |
| Part number | 6151590400 |
| Actual air consumption | 14.2 l/s |
| Air inlet thread size | 3/8 " |
| Blows per minute | 900 |
| Bolt size | M27 mm |
| Box dimensions | 224*90*232 mm |
| Clutch type | Twin Hammer |
| Free speed | 6300 rpm |
| Handle type | Pistol |
| Length | 222 mm |
| Maximum Torque (reverse) | 1630 Nm |
| Min. hose size | 13 mm |
| Net weight | 5 1/2 kg |
| Power/weight ratio | 296.4 Nm/kg |
| Side to center | 41 mm |
| Socket retainer | Ring |
| Sound Power | 107 db(A) |
| Sound pressure | 96 db(A) |
| Square drive | 3/4 " |
| Vibration | 9.4 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 1.3 m/s² |
| Working Torque Range (fwd) | 350 - 1290 Nm |
