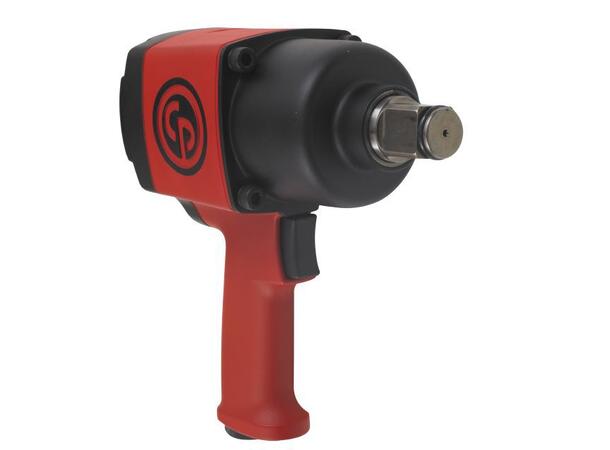

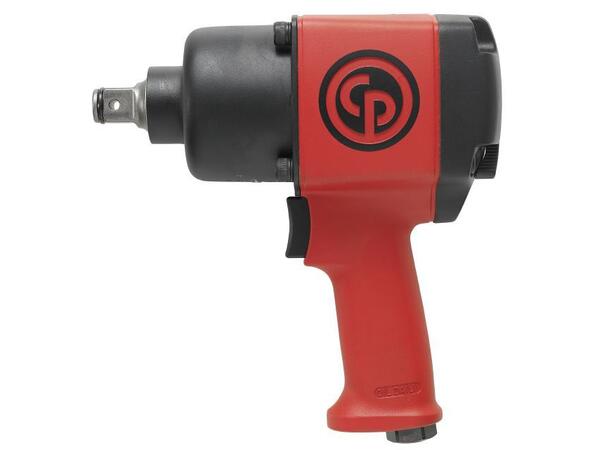

CP6773 Muttertrekker 1"
Kompakt Muttertrekker med høy kapasitet og tre trinns regulator
Benefits
Compact and Versatile for Industrial Maintenance applications
Built to withstand the harshest environments and the most demanding application
Powerful and very hard hitting tool
Features
1" impact wrench with Dual retainer
Short and narrow side-to-center for easy access
Robust Steel Clutch housing
Powerful Twin hammer clutch: 1,200 ft.lbs (1,630 Nm)

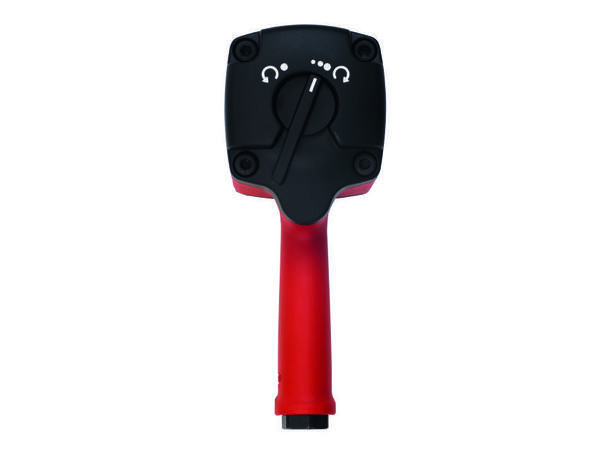

Combined power regulator with forward/reverse
| Model | CP6773 |
| Part number | 6151590410 |
| Actual air consumption | 14.2 l/s |
| Air inlet thread size | 3/8 " |
| Blows per minute | 900 |
| Bolt size | M27 mm |
| Box dimensions | 224*90*232 mm |
| Clutch type | Twin Hammer |
| Free speed | 6300 rpm |
| Handle type | Pistol |
| Length | 227.5 mm |
| Maximum Torque (reverse) | 1630 Nm |
| Min. hose size | 13 mm |
| Net weight | 5.6 kg |
| Power/weight ratio | 291.1 Nm/kg |
| Side to center | 41 mm |
| Socket retainer | Ring |
| Sound Power | 107 db(A) |
| Sound pressure | 96 db(A) |
| Square drive | 1 " |
| Vibration | 9.4 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 1.3 m/s² |
| Working Torque Range (fwd) | 350 - 1290 Nm |
