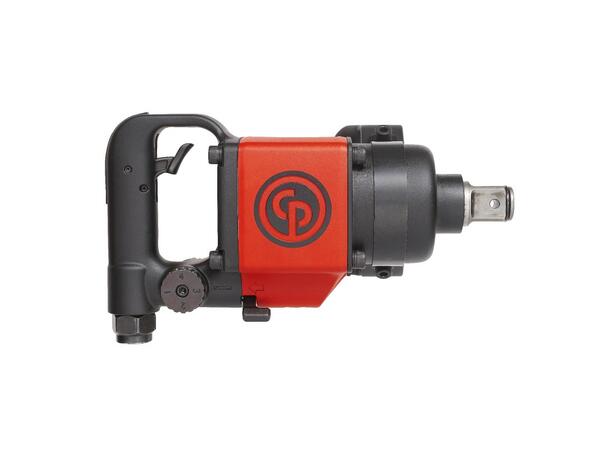

CP6773-D18D Muttertrekker 1"
Benefits
Suited for many industrial MRO
Good ergonomics giving less operator's fatigue
Hole and ring retaining system
Features
Only 6,7 kg
Robust with steel clutch housing and aluminum motor housing
Powerful, untightening torque 1300 ft.lb (1760 Nm)
| Model | CP6773-D18D |
| Part number | 6151590650 |
| Actual air consumption | 19.3 l/s |
| Air inlet thread size | 1/2 " |
| Blows per minute | 730 |
| Box dimensions | 325*190*130 mm |
| Clutch type | Twin hammer |
| Free speed | 6600 rpm |
| Free speed air consumption | 26.5 l/s |
| Handle type | D-Handle Inside Trigger |
| Length | 290 mm |
| Maximum Torque (reverse) | 1760 Nm |
| Min. hose size | 13 mm |
| Net weight | 6.7 kg |
| Over carton | 350*210*290 mm |
| Side to center | 41 mm |
| Socket retainer | Dual (hole+friction) |
| Sound Power | 109 db(A) |
| Sound pressure | 98 db(A) |
| Square drive | 1 " |
| Vibration | 11.4 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 2.9 m/s² |
| Working Torque Range (fwd) | 340 - 1450 Nm |
