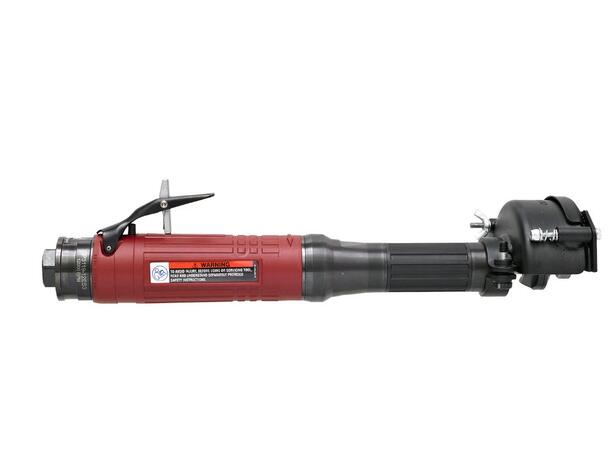

CP3119-12ES3X Radielsliper
Benefits
Industrial straight wheel grinder
High productivity
Highest durability in demanding applications up to 2000 hours maintenance
intervals
Features
Steel housing
Insulating composite over-housing
Streamlined safety lever
Rear exhaust3" (80 mm) wheel capacity
Extended body with rubber grip
1.2 hp (900 W) governed motor
12,000 rpm free speed
| Model | CP3119-12ES3X |
| Part number | 6151606030 |
| Actual air consumption | 960 l/mn |
| Air inlet thread size | 3/8 " |
| Box dimensions | 300X218x96 mm |
| European Directives | 2006/42/EC (17/05/2006) |
| European Sound standard | EN ISO 15744 |
| European Standards | EN ISO 11148-7 : 2012 |
| Free speed | 12000 rpm |
| Free speed air consumption | 7 l/s |
| Length | 338 mm |
| Min. hose size | 10 mm |
| Net weight | 1.7 kg |
| Power | 900 W |
| Rear exhaust | yes |
| Sound Power | 88 db(A) |
| Sound pressure | 77 db(A) |
| Sound uncertainty | 3 db(A) |
| Spindle thread | 1/2-13 |
| Vibration | NA m/s² |
| Vibration ISO | EN ISO 28927-4 |
| Wheel size | 80x13x9.52 mm |
