CP3349-SALAVEL
Benefits

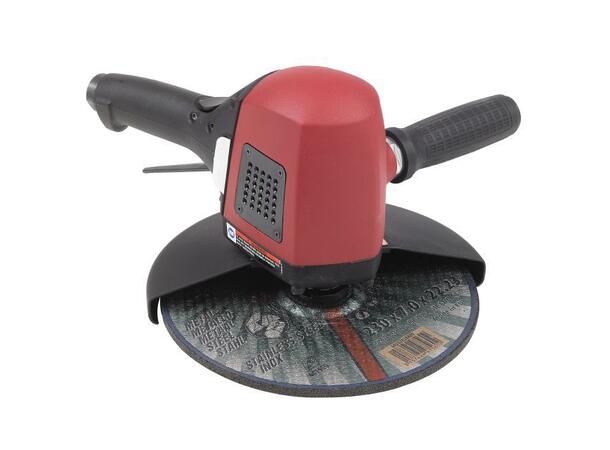

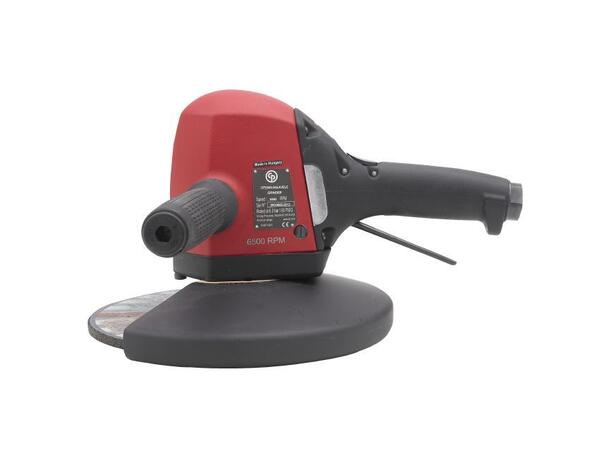

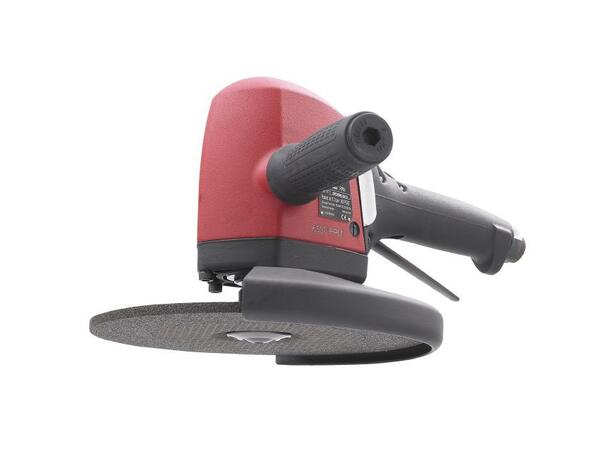

Industrial vertical wheel grinder
Highest durability in demanding applications with up to a 2,000 hour
maintenance interval
Superior torque for maximal productivity
Features
Integrated overspeed device for
improved safety
Built in oil tank for continuous lubrication
Double action safety lever
Robust housing
9" (230 mm) wheel capacity
4 hp (3,000 W) high performance governed motor
6,500 rpm free speed
ANSI compliant for NA markets
| Model | CP3349-SALAVEL |
| Part number | 6151609070 |
| Actual air consumption | 44 l/s |
| Air inlet thread size | 1/2 " |
| Box dimensions | 312x262x220 mm |
| Cup wheel Diam. | 9"x1/4"x7/8" / 230x6,4x22,2 mm |
| Free speed | 6000 rpm |
| Free speed air consumption | 13 l/s |
| Length | 280 mm |
| Min. hose size | 15 mm |
| Net weight | 4.4 kg |
| Power | 3000 W |
| Side to center | yes mm |
| Sound Power | 98 db(A) |
| Sound pressure | 87 db(A) |
| Spindle thread | 5/8-11 |
| Vibration | 4 m/s² |
| Vibration ISO | ISO-28927-1 |
| Vibration uncertainty (K) | NA m/s² |
| Wheel size | 230 mm |
