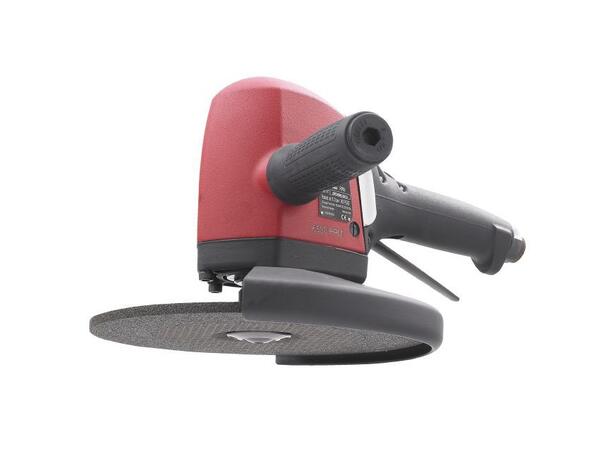

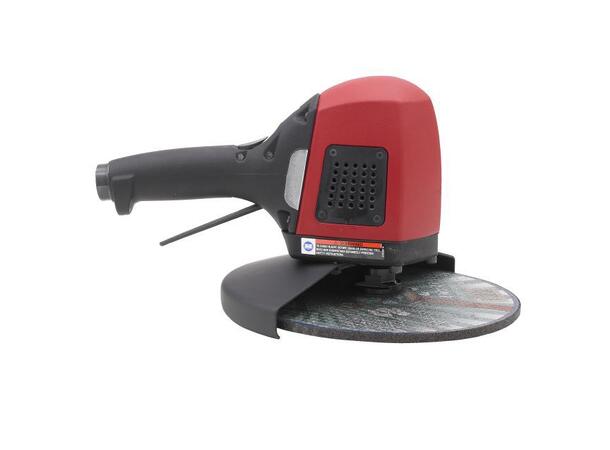

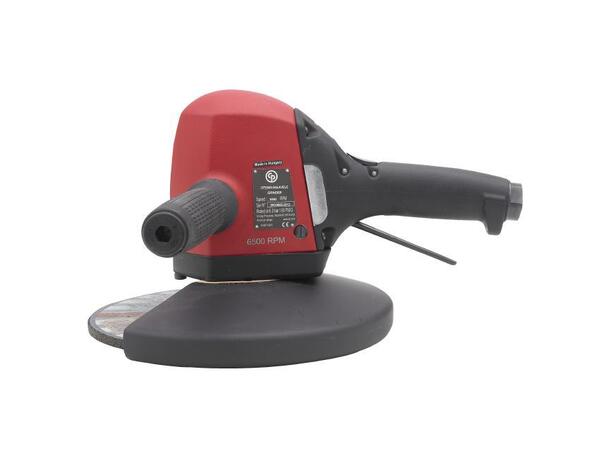

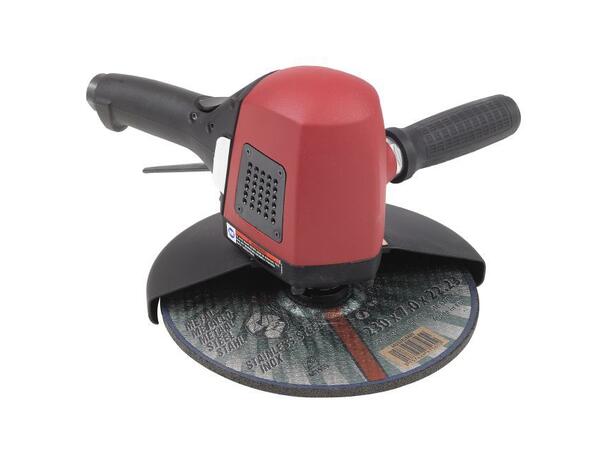

CP3349-SALAVELE
Vertikalsliper
Benefits
Industrial vertical wheel grinder
Highest durability in demanding applications with up to a 2,000 hour
maintenance interval
Superior torque for maximal productivity
Features
Robust housing
Built-in lubricant tank
Double action safety lever
9" (230 mm) wheel capacity
4 hp (3,000 W) high performance governed motor
6,500 rpm free speed
| Model | CP3349-SALAVELE |
| Part number | 6151609130 |
| Actual air consumption | 44 l/s |
| Air inlet thread size | 1/2 " |
| Average air consumption | 0 l/s |
| Box dimensions | 312x262x220 mm |
| Cup wheel Diam. | 9"x1/4"x7/8" / 230x6,4x22,2 mm |
| Free speed | 6500 rpm |
| Free speed air consumption | 13 l/s |
| Length | 280 mm |
| Min. hose size | 15 mm |
| Net weight | 4.4 kg |
| Power | 3000 W |
| Side to center | yes mm |
| Sound Power | 98 db(A) |
| Sound pressure | 87 db(A) |
| Spindle thread | 5/8-11 |
| Vibration | 4 m/s² |
| Vibration ISO | ISO-28927-1 |
| Vibration uncertainty (K) | NA m/s² |
| Wheel size | 230 mm |
