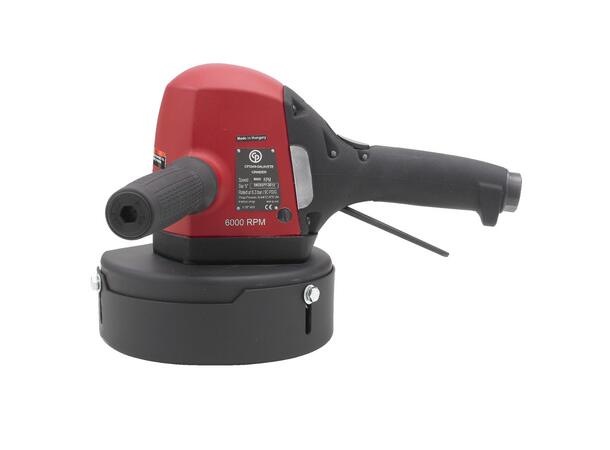

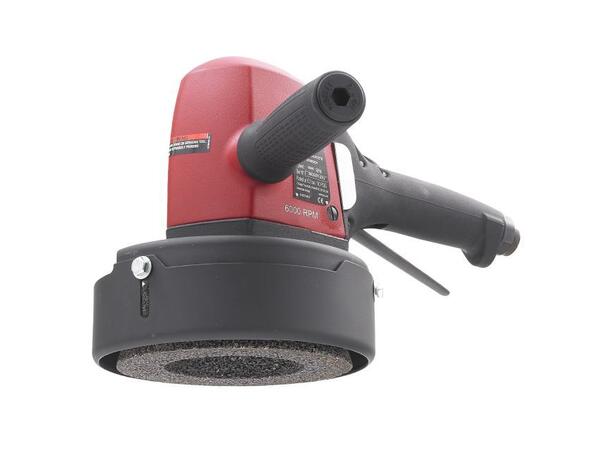

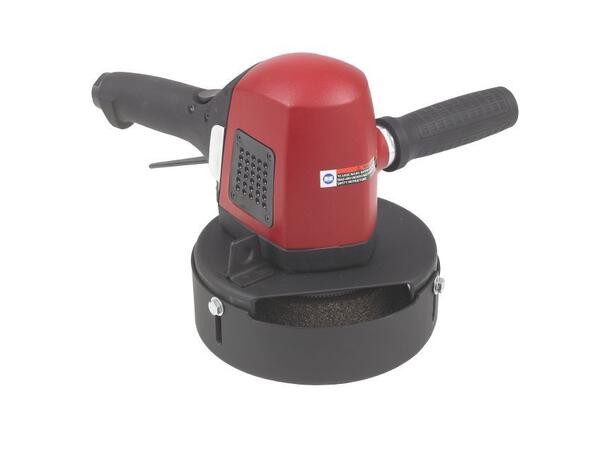

CP3349- SALAVETE Vertikalsliper
For sliping med
koppskiver med 5/8-11 gjenger.
Innebygget oljesmører
reservoir i maskinen
Meget robust
slipemaskin
Benefits
Industrial vertical wheel grinder
Highest durability in demanding applications with up to a 2,000 hour
maintenance interval
Superior torque for maximal productivity
Features
Robust housing
Built-in lubricant tank
Double action safety lever
6" (150 mm) cup wheel capacity
4 hp (3,000 W) high performance governed motor
6,000 rpm free speed
| Model | CP3349-SALAVETE |
| Part number | 6151609150 |
| Actual air consumption | 43 l/s |
| Air inlet thread size | 1/2 " |
| Box dimensions | 312x262x220 mm |
| Cup wheel Diam. | 150 mm |
| Free speed | 6000 rpm |
| Free speed air consumption | 12 l/s |
| Length | 280 mm |
| Min. hose size | 15 mm |
| Net weight | 4.4 kg |
| Power | 3000 W |
| Sound Power | 95 db(A) |
| Sound pressure | 84 db(A) |
| Spindle thread | 5/8-11 |
| Vibration | <2.5 m/s² |
| Vibration ISO | ISO-28927-1 |
| Vibration uncertainty (K) | - m/s² |
| Wheel size | 150 mm |
