CP0200B22 Benkestamper
Fordeler
Ideell for støperiapplikasjoner
Komfortabel drift og høy produksjon
Benkestampere brukt til støping av sand i sylindere, store former
Funksjoner
Høy effektivitet grunnet høy bpm
Ekstra holdbarhet grunnet varmebehandlede deler
Teknisk informasjon
| Model |
CP0200B22 |
| Part number |
6151618030 |
| Actual air consumption |
502 l/s |
| Air inlet thread size |
3/8 " |
| Average air consumption |
- l/s |
| Blows per minute |
1020 |
| Bore |
22 rpm |
| Butt diameter |
51 mm |
| European Directives |
2006/42/EC (17/05/2006) |
| European Standards |
EN ISO 11148-4:2012 |
| Length |
350 mm |
| Min. hose size |
10 mm |
| Net weight |
3 kg |
| Sound Power |
106 db(A) |
| Sound pressure |
95 db(A) |
| Sound Uncertainty |
3 db(A) |
| Stroke |
64 mm |
| Vibration |
19,4 m/s² |
| Vibration ISO |
ISO-28927-6 |
| Vibration uncertainty (K) |
6,1 m/s² |

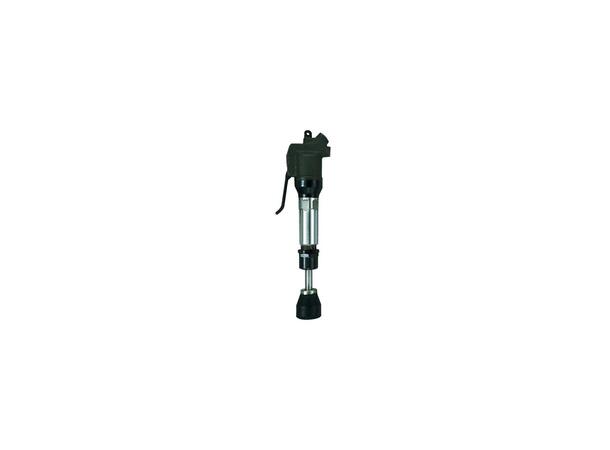

NB! Bildet er kun en illustrasjon
