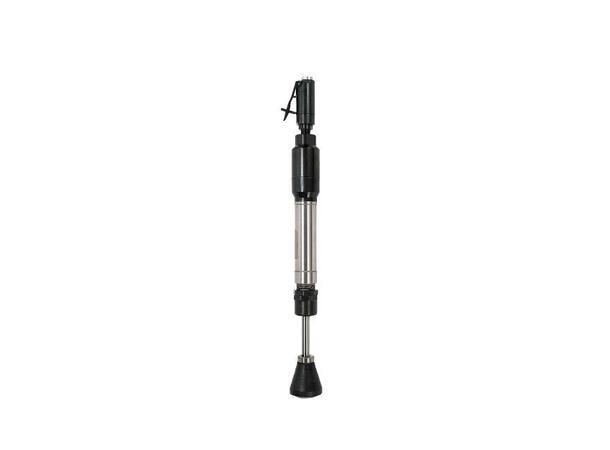

CP0200B22-2F
Benkestamper
Benefits
Ideal for foundry applications
Comfortable operation and high production
Bench rammers used for casting sand in cylinders, large molds
Features
High effiency due to the high bpm
Extra durability due to heat treated parts
Delivered with safety lever
| Model | CP0200B22-2F |
| Part number | 6151618040 |
| Actual air consumption | 502 l/mn |
| Air inlet thread size | 3/8 " |
| Blows per minute | 1020 |
| Bore | 22 mm |
| Butt diameter | 51 mm |
| European Directives | 2006/42/EC (17/05/2006) |
| European Sound standard | ISO 15744 |
| European Standards | EN ISO 11148-4:2012 |
| Length | 350 mm |
| Min. hose size | 10 mm |
| Net weight | 3 kg |
| Sound Power | 106 db(A) |
| Sound pressure | 95 db(A) |
| Sound uncertainty | 3 db(A) |
| Stroke | 64 mm |
| Vibration | 19.4 m/s² |
| Vibration ISO | ISO-28927-6 |
| Vibration uncertainty (K) | 6.1 m/s² |
